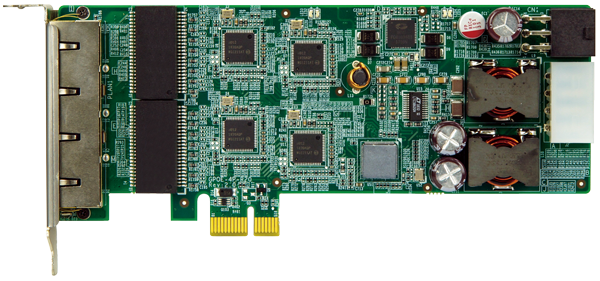

GPOE-4P

PCI Express Power over Ethernet card, 4-port 1000 Base(T), 802.3at/af compliant, low profile, RoHS

  • Overview

    ● PCI Express® x1 compliant
    ● Support for total 60 watts under full load
    ● Support link aggregation/jumbo frames (9 Kbyte)
    ● Supports 12V~24V DC input power
  • Features

    GPOE_series_expansion-card

    Introducing GPOE-4P

    Introducing GPOE-2P

    Application

    Machine Vision

    With PoE technology, users can easily connect various PoE PD supported IP camera to the control system through the standard CAT-5/CAT-6 cable (up to 100 meters) to transfer both electrical power and data at the same time. In this application, users can lower the difficulty of routing to avoid the risk of power adapter failure, and easily build the system to act as PSE, allowing the entire production process to be monitored and controlled from A to Z.

    GPOE-machine-vision

    Access Control

    Access control system can be easily developed by connecting PoE-capable devices like door controller, locking system and RFID reader. Combining power supply and data transmission in a single cable can save both cost and time on system installation. It is also easy to integrate IP-based system into the existing IP infrastructure.

    GPOE-accesscontrol

    In-Vehicle System

    The GPOE series can be easily added into in-vehicle control system and connect to various devices like surveillance camera, bus payment terminal or in-bus digital signage system. Both data and electrical power can run on standard CAT-5/CAT-6 cable to lower the difficulty of routing and avoid the risk of power adapter failure.

    GPOE_in-vehicle-system

    Dimension

    GPOE-2P_dimension
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Dimensions
      Dimensions160 mm x 65 mm
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature0°C ~ 60°C
      Storage Temperature-10°C ~ 70°C
      Features
      Features1. PCI Express® x1 compliant
      2. Support for total 60 watts under full load
      3. Support link aggregation/jumbo frames (9 Kbyte)
      4. Supports 12V~24V DC input power
      I/O Interface
      EthernetIntel® I211-AT controller
      9kB jumbo frame
      IEEE 802.3az, IEEE1588
      Power
      Input12~24V DC input
      1 x Internal DC input (1x4 pin)
      1 x Internal DC input (2x3 pin)
      **Caution! Choose one input only at a time
      Weight
      Weight110g
    • Ordering Info.

      Item No. Description
      GPOE-4P-R10PCI Express Power over Ethernet card, 4-port 1000 Base(T), 802.3at/af compliant, low profile, RoHS
    • Package Contents

      • 1 x GPOE-4P card

      • 1 x QIG (Quick Installation Guide)
