  • Overview

    ● 10.1” 1280x800 LCD
    ● Project Capacitive Touch Screen
    ● CPU: Rockchip RK3399 (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)
    ● OS: Android 7.1
    ● Boot Flash: 16GB eMMC Nand Flash
    ● RAM: 2GB LPDDR3
  • Features

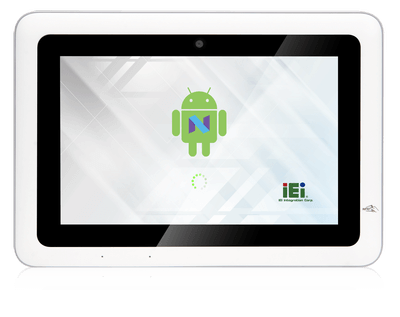

    IOVU-201AD-panel-pc-BN

    IOVU-210AD-RK39

    IEI announces three new generation IOVU RK39 Series – IOVU-207AR-RK39, IOVU-210AD-RK39 and IOVU-210AR-RK39, which are designed with different screen size from 7” to 10” and powered by RK3399 chipset. All new series integrate high capacity memory (16 GB eMMC and 2 GB LPDDR3), and operate under the easy-to-use Android OS for achieving optimized computing capability. The IOVU-207AR-RK39 is a 7” panel PC, which features one SOS key with red indicator bar to call help in emergency and two function keys with green indicator bar which can be customized by AP programming. The IOVU-210AD and the IOVU-210AR are 10.1” panel PCs. With the equipped PoE function, both data and power can be transferred through one single LAN cable to simplify the construction and offer dual power input. The difference between two models is the IOVU-201AD has bottom I/O port design, and the IOVU-210AR has rear I/O port design.

    This IOVU series can do much more in AI applications than you think. It can offer the face recognition technology for access control, and be used for digital signage or as a POS system to analyze consuming behaviors. Voice control is the best method for managing devices in building automation system. The IOVU series is built-in with powerful audio codec chip to support voice recognition.

    RockChip RK3399 Processor

    Overview

    ● CPU: Rockchip RK3399 (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)
    ● Mali-T864 GPU (45% more than Mali-T628)
    ● 4K UHD H265/H264/VP9
    ● Dual USB Type-C and USB 2.0
    ● HDMI 2.0a with HDCP 2.2.

    ROCK-RK3399-overview
    Powerful, but low energy

    Powerful, but low energy

    Normally, the CPU will run A53 for low power consumption. If the application needs more computing power, A72 CPU will increase performance by 50%.

    +45% performance than Mali-T628

    RK3399 has more powerful GPU and supports 4K resolution video decode.

    +45% performance than Mali-T628
    Supported OS

    Supported OS

    IEI products with RK3399 family CPU support OS with full API/SDK, making it easy to develop your own application on Android environment.
    • Android 7.1 (Android 8.1 coming soon)

    Applications for RK3399

    RK3399 has features of high performance, high expansion, all-round application and it will empower AI and assist the layout of industry products.

    application

    I/O Interface

    AFOKAR-08A-panel-pc-interface

    Dimension

    IOVU-210AD-panel-pc-dimension
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Communication
      BluetoothBluetooth V4.1
      Wi-Fi802.11 a/b/g/n/ac
      Display
      Brightness(cd/m2)250 cd/m2 (typ.)
      Contrast Ratio800:1(typ.)
      LCD Size10.1”
      Max Resolution800(RGB) x 1280
      Environment
      Humidity10% ~ 95%, non-condensing
      Operating Temperature-10°C ~ 50°C with air flow
      Safety & EMCCE/FCC Class B
      Storage Temperature-20°C ~ 60°C
      Form factor
      Form factor10.1” 1280x800 LCD
      Project Capacitive Touch Screen
      CPU: Rockchip RK3399 (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)
      OS: Android 7.1
      Boot Flash: 16GB eMMC Nand Flash
      RAM: 2GB LPDDR3
      Function Key
      Function Key1 x Reset button
      I/O Interface
      Ethernet1 x GbE RJ45 by RTL8211E with PoE (PD)
      I/O Ports1 x RS-232 (DB-9)
      1 x RS-232/422/485 (DB-9)
      4 bit DIO (2 in, 2 out)
      USB1 x USB 3.0 Type A
      2 x USB 2.0 Type A
      Other Features
      Audio1 x Speaker (2W)
      CameraFront 5-megapixel (CMOS)
      Microphone2 x Digital Mic in
      RFID Reader13.56 MHz ISO4443 A/B, read-write capable,
      ISO 14443A (MIFARE), ISO 14443B (FeliCa)
      Physical Characteristics
      ColorWhite
      Dimensions (LxWxH) (mm)293 x 209.5 x 44.5
      MountingVESA Mount 75mmx75mm
      Net Weight1.84 kg
      Power
      Input9 V~30 V DC input (φ2.5/5.5mm DC Jack)
      2 pin terminal block DC input
      Storage
      Storage1 x Micro SD slot
      System
      ChipsetSoC
      Cooling method / System FanFanless
      CPURockchip RK3399
      (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)
      On-board Memory2GB LPDDR3-1866
      Storage16GB eMMC NAND FLASH
      Touch
      Touch Screen10 points Project Capacitive
      LED Function
      LED Function1 x Power LED
      1 x Wi-Fi LED
      1 x Bluetooth LED
    • Ordering Info.

      Item No. Description
      IOVU-210AD-RK39-R10-CN10.1" TFT-LCD; Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, WiFi/BT, IEEE 802.3at for POE, phone jack, 4xGPIO, Android 7.1, NFC, CN reg, ROHS
      IOVU-210AD-RK39-R10-EU10.1" TFT-LCD; Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, WiFi/BT, IEEE 802.3at for POE, phone jack, 4xGPIO, Android 7.1, NFC, EU reg, ROHS
      IOVU-210AD-RK39-R10-TW10.1" TFT-LCD; Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, WiFi/BT, IEEE 802.3at for POE, phone jack, 4xGPIO, Android 7.1, NFC, TW reg, ROHS
      IOVU-210AD-RK39-R10-US10.1" TFT-LCD; Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, WiFi/BT, IEEE 802.3at for POE, phone jack, 4xGPIO, Android 7.1, NFC, US reg, ROHS
    • Package Contents

      • 1 x IOVU-210AD Device
