Overview● 10.1” 1280x800 LCD● Project Capacitive Touch Screen● CPU: Rockchip RK3399 (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)● OS: Android 7.1● Boot Flash: 16GB eMMC Nand Flash● RAM: 2GB LPDDR3-1866● Grove Interface IoT Sensor connectors

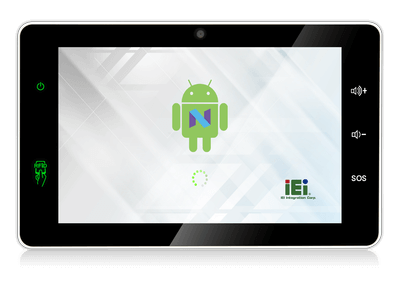

IEI announces three new generation IOVU RK39 Series – IOVU-207AR-RK39, IOVU-210AD-RK39 and IOVU-210AR-RK39, which are designed with different screen size from 7” to 10” and powered by RK3399 chipset. All new series integrate high capacity memory (16 GB eMMC and 2 GB LPDDR3), and operate under the easy-to-use Android OS for achieving optimized computing capability. The IOVU-207AR-RK39 is a 7” panel PC, which features one SOS key with red indicator bar to call help in emergency and two function keys with green indicator bar which can be customized by AP programming. The IOVU-210AD and the IOVU-210AR are 10.1” panel PCs. With the equipped PoE function, both data and power can be transferred through one single LAN cable to simplify the construction and offer dual power input. The difference between two models is the IOVU-201AD has bottom I/O port design, and the IOVU-210AR has rear I/O port design.
This IOVU series can do much more in AI applications than you think. It can offer the face recognition technology for access control, and be used for digital signage or as a POS system to analyze consuming behaviors. Voice control is the best method for managing devices in building automation system. The IOVU series is built-in with powerful audio codec chip to support voice recognition.
RockChip RK3399 Processor
● CPU: Rockchip RK3399 (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)
● Mali-T864 GPU (45% more than Mali-T628)
● 4K UHD H265/H264/VP9
● Dual USB Type-C and USB 2.0
● HDMI 2.0a with HDCP 2.2.
Powerful, but low energy
Normally, the CPU will run A53 for low power consumption. If the application needs more computing power, A72 CPU will increase performance by 50%.
+45% performance than Mali-T628
RK3399 has more powerful GPU and supports 4K resolution video decode.
IEI products with RK3399 family CPU support OS with full API/SDK, making it easy to develop your own application on Android environment.
• Android 7.1 (Android 8.1 coming soon)
Applications for RK3399
RK3399 has features of high performance, high expansion, all-round application and it will empower AI and assist the layout of industry products.
Spec Item Description Communication Bluetooth Bluetooth V4.1 Wi-Fi 802.11 a/b/g/n/ac Display Brightness(cd/m2) 250 cd/m2 (typ.) Contrast Ratio 800:1(typ.) LCD Size 10.1” Max Resolution 800(RGB) x 1280 Environment Humidity 10% ~ 95%, non-condensing Operating Temperature -10°C ~ 50°C with air flow Safety & EMC CE/FCC Class B Storage Temperature -20°C ~ 60°C Form factor Form factor 10.1” 1280x800 LCD
Project Capacitive Touch Screen
CPU: Rockchip RK3399 (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)
OS: Android 7.1
Boot Flash: 16GB eMMC Nand Flash
RAM: 2GB LPDDR3-1866
Grove Interface IOT Sensor connectors
Function Key Function Key 1 x Reset button
2 x Volume key ( up / down) on screen
1 x SOS key on screen
I/O Interface Ethernet 1 x GbE RJ45 by RTL8211E with PoE (PD)
1 x GbE RJ45 by RTL8211E
I/O Ports 1 x RS-232 (4 pin terminal block)
1 x RS-232/422/485 (4 pin wafer connector)
1 x 4 bit (2 in, 2 out)
2 x 2 bit (1 in, 1 out)
3 x I²C sensor connectors (3V)
USB 1 x USB 3.0 Type A
1 x USB 2.0 Type A
Other Features Audio 2 x Speaker (1.5W) Camera Front 5-megapixel (CMOS) Microphone 1 x Digital Mic in RFID Reader 13.56 MHz ISO4443 A/B, read-write capable,
ISO 14443A (MIFARE), ISO 14443B (FeliCa)
Physical Characteristics Color White Dimensions (LxWxH) (mm) 282.5 x 174.3 x 26.8 Mounting Panel mount, In wall cage Net Weight 0.85 kg Power Input 9 V~30 V DC input (φ2.5/5.5mm DC Jack) Storage Storage 1 x Micro SD slot System Chipset SoC Cooling method / System Fan Fanless CPU Rockchip RK3399
(Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)
On-board Memory 2GB LPDDR3-1866 Storage 16GB eMMC NAND FLASH Touch Touch Screen 10 points Project Capacitive LED Function LED Function 1 x Power LED
1 x RFID LED
Item No. Description IOVU-210AR-RK39-R10-CN 10.1" TFT-LCD; Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Camera, WIFI/BT, POE 802.3at, COM port, DIO, 4pin sensor connector, Front Camera, NFC, CN reg, ROHS IOVU-210AR-RK39-R10-EU 10.1" TFT-LCD; Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Camera, WIFI/BT, POE 802.3at, COM port, DIO, 4pin sensor connector, Front Camera, NFC, EU reg, ROHS IOVU-210AR-RK39-R10-TW 10.1" TFT-LCD; Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Camera, WIFI/BT, POE 802.3at, COM port, DIO, 4pin sensor connector, Front Camera, NFC, TW reg, ROHS IOVU-210AR-RK39-R10-US 10.1" TFT-LCD; Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Camera, WIFI/BT, POE 802.3at, COM port, DIO, 4pin sensor connector, Front Camera, NFC, US reg, ROHS
1 x IOVU-210AR Device
1 x Wall mount bracket
1 x Screw set
