AFL3-W19A-AL

Intel® Celeron® J3455 ( quad core , 1.5GHz up to 2.3 GHz)

  • Overview

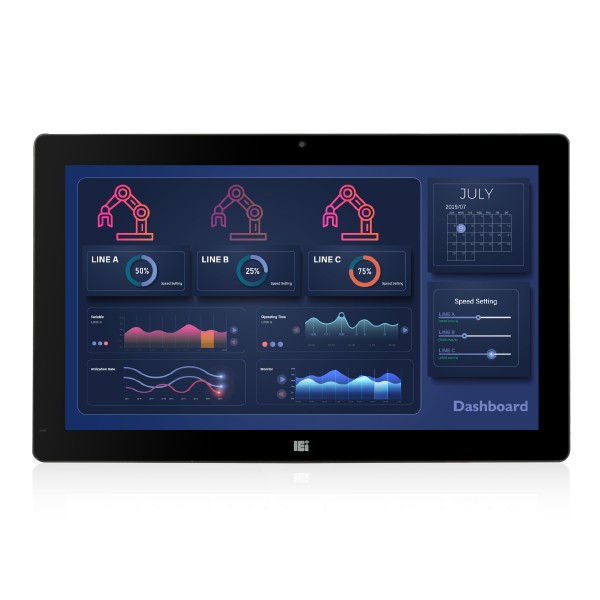

    ● 18.5” light industrial interactive panel PC
    ● Intel Apollo lake processor
    ● Wide range DC input with lockable DC jack
    ● Selectable AT/ATX power mode
    ● Built-in speakers
    ● One mSATA slot
    ● One HDMI output
    ● IP64 compliant front panel
    ● IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)
  • Features

    AFL3-W19A-AL_BN

    I/O Interface

    AFL3-W19A-AL_IO-interface

    Dimension

    AFL3-W19A-AL_IO-Dimension
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Communication
      BluetoothBluetooth V4.0
      WirelessIEEE 802.11a/b/g/n/ac
      Environment
      Humidity10% to 95% (non-condensing)
      Operating Temperature-15ºC ~ 50ºC
      Storage Temperature-20°C~60°C
      I/O Interface
      AudioAMP 3W + 3W (internal speaker)
      Audio CodecALC269
      Ethernet2x PCIe GbE by Intel® i211 controller
      RAMOne 204-pin 1600/1333 MHz single-channel DDR3L
      SO-DIMM, 4GB pre-installed (system max. 8GB)
      LCD
      Backlight MTBF30000 (LED backlight)
      Brightness (cd/m2)250
      Contrast Ratio1000:1
      LCD Color262K
      Pixel Pitch (mm)0.240 (H) x 0.240 (V)
      Resolution1366 x 768 (16:9)
      Size18.5”
      Viewing Angle (H-V)170º / 160º
      Other Features
      Camera2-megapixel with low light function
      Microphonedigital microphone
      Power
      Power consumption12V@3.2A
      System
      CPUIntel® Celeron® J3455 ( quad core , 1.5GHz up to 2.3 GHz)
      Storage(1) 1 x 2.5” SATA 3Gb/s HDD bay
      (2) 1 x mSATA slot
      Touch
      Touch ControllerEETI EXC3180
      Touch ScreenProjected capacitive type with USB interface (anti-UV)
      Weight
      Weight6.3/9
      I/O Interface
      I/O Interface1 x AT/ATX switch
      1 x HDMI
      2 x LAN(GbE)
      1 x Line out
      1 x Power In
      1 x Power Switch
      1 x Reset Button
      1 x RS-232(RJ45 (RI/5V/12V))
      1 x RS-422/485(RJ45 (RI/5V/12V))
      2 x USB 2.0
      2 x USB 3.0
    • Ordering Info.

      Item No. Description
      AFL3-W19A-AL-J2/PC/4G-R10Wide 18.5” 250 cd/m² 1366x768 Panel PC with with Intel® Celeron® Processor J3455 (10W) on-board Processor (Apollo lake), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,R10
    • Package Contents

      • 4 x Round head machine screw

      • 4 x Pan head machine screw

      • 1 x Power cord

      • 1 x Power adapter 63040-010060-120-RS
