NANO-GLX

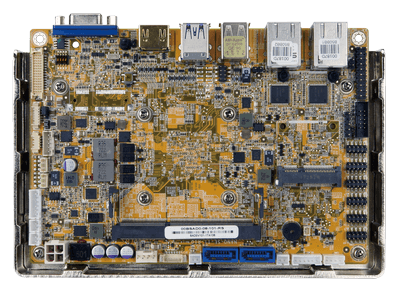

EPIC SBC supports AMD® Embedded G-Series SoC with VGA/HDMI™/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 6Gb/s, mSATA, COM, HD Audio and RoHS

End of Life

End of Life Notice

* Effective Date: 2020/12/31

» AMD Embedded G-Series LX Family SOCs which is compatible with AMD Embedded G-Series “eKabini” and “Steppe Eagle” platform
» Highly-competitive price, performance profiles and low power attributes
» AMD Embedded G-Series LX Family SOCs support up to two display interfaces, enabling flexible multi-display configurability

Hardware Spec.

System
CPU AMD® Embedded G-Series ”Steppe Eagle” SoC
GX-424CC on-board Soc (2.4GHz, quad-core,
2MB cache, TDP=25W)
AMD® Embedded G-Series ”eKabini” SoC
GX-415GA on-board Soc (1.5GHz, quad-core,
2MB cache, TDP=15W)
AMD® Embedded G-Series ”LX” SoC
GX-210KL on-board Soc (1.0GHz, dual-core,
1MB cache, TDP=4.5W)
Memory One 204-pin 1600/1333 MHz singlechannel DDR3 & DDR3L SDRAM unbuffered SO-DIMM
Memory Max. 8GB
Physical Characteristics
Dimensions (LxWxH) (mm) 115 X 165
Net Weight 350g
Storage
Storage 2 x SATA :6Gb/s with 5V SATA power connector(no RAID)
I/O Interface
Display Output 1 x VGA :up to 2048x1536@60Hz
1 x HDMI™ :up to 3840x2160@60Hz
1 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz)
Audio Description: Realtek ALC892 HD Audio codec
1 x S/PDIF :1x4 pin
1 x Front Audio :2x5 pin
I/O Interface 5 x Internal RS-232 :2x5 pin, P=2.0
1 x Internal RS-422/485 :1x4 pin, p=2.0
2 x External USB 2.0
2 x External USB 3.2 Gen1x1
4 x Internal USB 2.0 :2x4 pin, p=2.0
1 x PS/2 :1x6 pin
Expansion 1 x PCIe mini Card Slot :Full-size(supports mSATA co-ray SATA port 2)
Other Features
TPM 2x10 pin
iRIS 1 X iRIS-1010 (By request)
Power
Power Consumption 12V@1.02A (AMD GX-415GA 1.5GHz CPU
with 1600 MHz 8 GB DDR3 memory)
Power Supply 12V only DC input
1 x Internal power connector (2x2 pin)
Support AT/ATX mode
Environment
Operating Temperature 0°C ~ 60°C
Storage Temperature -10°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

NANO-GLX-2101-R10 EPIC SBC supports AMD 28nm dual core GX-210KL 1.0GHz (4.5W)on-board SoC with VGA/HDMI™/LVDS, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 6Gb/s, mSATA , COM and Audio and RoHS
NANO-GLX-2101-ECO-R10 EPIC SBC supports AMD® 28nm dual core GX-210KL 1.0GHz (4.5W)on-board SoC with VGA/HDMI™/LVDS, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 6Gb/s, mSATA , COM and Audio, ECO packing and RoHS

Package Contents

Package Content
  • 1x NANO-GLX single board computer with heatspreader

  • 1 x Audio cable

  • 2 x RS-232 cable 1 x Power cable

  • 2 x SATA with power cable kit

  • 1 x QIG.


Download Specs.
