AFL3-12C-ULT3

Intel® Core™ i5 and Celeron® ULT Processor

  • Overview

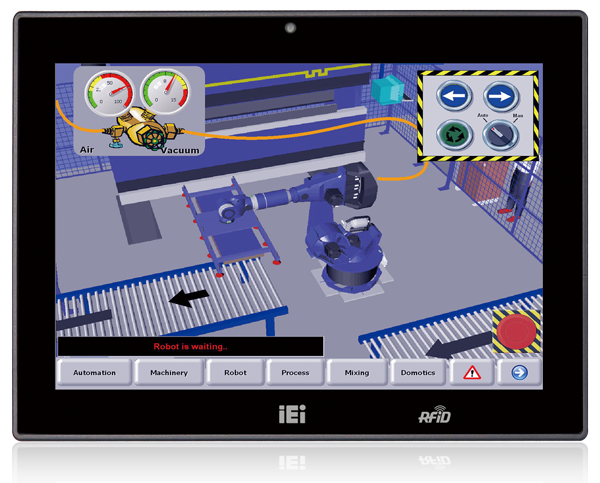

    ● 12.1” light industrial interactive panel PC
    ● Intel 6th Generation Skylake
    ● Wide range DC input with lockable DC jack
    ● Selectable AT/ATX power mode
    ● Built-in speakers
    ● One mSATA slot
    ● One HDMI output
    ● IP64 compliant front panel
    ● IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)
  • Features

    IEI AFL3-12C-ULT3 light industrial panel PC banner

    I/O Interface

    AFL3-12C-ULT3 panel pc IO interface

    Dimension

    AFL3-12C-ULT3 panel pc dimension
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Communication
      BluetoothBluetooth V4.0
      WirelessIEEE 802.11a/b/g/n/ac
      Environment
      Humidity10% to 95% (non-condensing)
      Operating Temperature-20°C ~ 50°C
      Storage Temperature-20°C~60°C
      I/O Interface
      AudioAMP 3W + 3W (internal speaker)
      Audio CodecALC892
      Ethernet2x PCIe GbE by Intel® i211 controller
      RAMOne 260-pin 2133MHz single-channel, 4GB
      DDR4L SO-DIMM pre-installed (system max. 8GB)
      LCD
      Backlight MTBF50000 (LED backlight)
      Brightness (cd/m2)500
      Contrast Ratio700:1
      LCD Color16.2M
      Pixel Pitch (mm)0.240 (H) x 0.240 (V)
      Resolution1024 x 768 (4:3)
      Size12.1""
      Viewing Angle (H-V)160º / 160º
      Other Features
      Camera2-megapixel with low light function
      Microphonedigital microphone
      Power
      Power consumption12V@6A
      System
      CPU6th Generation Intel® Core™ i5 and Celeron® on-board processor
      Storage2.5” SATA 3Gb/s HDD bay
      M.2 M key PCIe (2230)
      mSATA slot (PCIe/mSATA/USB)
      Touch
      Touch ControllerEETI EXC3180
      Touch ScreenProjected capacitive type with USB interface (anti-UV)
      Weight
      Weight3/5.03
      I/O Interface
      I/O Interface1 x AT/ATX switch
      1 x HDMI
      2 x LAN(GbE)
      1 x Power In
      1 x Power Switch
      1 x Reset Button
      1 x RS-232(DB-9 (RI/5V/12V))
      1 x RS-422/485(DB-9 (RI/5V/12V))
      2 x USB 2.0
      2 x USB 3.0
    • Ordering Info.

      Item No. Description
      AFL3-12C-ULT3-C/PC/4G-R1012.1”500 cd/m² 1024x768 Panel PC with Intel® 14nm 6th Generation Mobile Celeron®3855U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone, with AG,R10
      AFL3-12C-ULT3-i5/PC/4G-R1012.1”500 cd/m² 1024x768 Panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone, with AG,R10
    • Package Contents

      • 4 x Round head machine screw

      • 4 x Pan head machine screw

      • 1 x Power cord

      • 1 x Power adapter 63040-010096-100-RS
