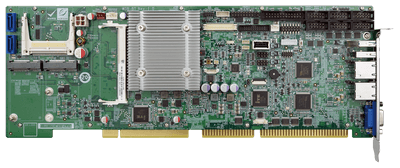

WSB-BT

Full-size PICMG 1.0 CPU Card supports Intel® Celeron™ on-board SoC with VGA, iDP, Dual Intel® PCIe GbE, USB 3.0, PCIe Mini, SATA, mSATA, COM, CF, Audio and RoHS

  • Overview

    ● Full-size PICMG 1.0 with Intel® Celeron™ J1900 & N2807 on-board SoC
    ● Dual-channel 1066/1333MHz DDR3L SO-DIMM supports up to 8GB of memory
    ● Dual Gigabit Ethernet LAN controller
    ● SATA 3Gb/s, USB 3.0 5Gb/s, PCIe Mini, mSATA and CF card supported
    ● TPM v1.2 & 2.0 hardware security function supported by TPM module
    ● Stiffener bars
  • Features

    WSB-BT Full-size PICMG 1.0 CPU Card
    WSB-BT single board computer features

    Dimensions

    WSB-BT single board computer dimensions
  • Specifications

    • Hardware Spec.

      Spec Item Description
      BIOS
      BIOS AMI UEFI BIOS
      Dimensions
      Dimensions 338 mm x 122 mm
      Display
      Display Output 1 x VGA (up to 1920x1200@60Hz)
      1 x 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)
      1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
      Environment
      Humidity 5% ~ 95%, non-condensing
      Operating Temperature -20°C ~ 60°C
      Storage Temperature -30°C ~ 70°C
      Expansion Slots
      Expansion Slots 1 x Full/Half-size PCIe Mini card slot
      PCI and ISA signal via golden finger
      I/O Interface
      Audio 7.1 channel HD Audio supported by IEI AC-KIT-892HD kit
      Digital I/O 8-bit digital I/O (2x5 pin)
      Ethernet LAN1: Intel® I211-AT PCIe controller
      LAN2: Intel® I211-AT PCIe controller
      Expansion 1 x Full/Half-size PCIe Mini card slot
      PCI and ISA signal via golden finger
      I²C 1 x I²C (1x4 pin)
      I/O Interface
      I/O Interface 1 x Expansion(Full/Half-size PCIe Mini card slot, PCI and ISA signal via golden finger)
      1 x Front panel(2x7 pin, Power LED, HDD LED, Speaker, Power Button, Reset Button)
      1 x I²C(1x4 pin)
      4 x Internal RS-232(2x5 pin, P=2.54)
      2 x Internal RS-232/422/485(2x5 pin, P=2.54)
      4 x Internal USB 2.0(2x5 pin, P=2.54)
      1 x KB/MS(1x6 pin)
      1 x LPT(2x13 pin)
      1 x SMBus(1x4 pin)
      1 x USB 2.0(180º Type-A)
      Power
      Power consumption 3.3V@0.009A, 5V@4.68A, 5Vsb@0.008A, 12V@1.143A
      (Intel® Celeron® J1900 1.99 GHz 10W CPU with 8GB 1600MHz DDR3L memory)
      Power Supply 5V/12V, AT/ATX support
      Storage
      Storage 1 x CF Type II
      Storage 1 x mSATA (SATA 3Gb/s)
      Storage 2 x SATA 3Gb/s
      System
      CPU Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
      Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)
      Graphcis Controller Intel® HD Graphics Gen 7 Engines with 4 execution units, supports DX11.1, OpenGL 4.2 and OpenCL1.2
      Memory Max. One 204-pin 1333/1066MHz dual-channel DDR3L SDRAM unbuffered DIMM supports
      up to 8GB (J1900) or 4GB (N2807)
      Watchdog Timer
      Watchdog Timer Software programmable supports 1~255 sec. system reset
      Weight
      Weight GW: 1000g / NW: 260g
    • Ordering Info.

      Item No. Description
      WSB-BT-J19001-R10Full-size PICMG 1.0 CPU card supports Intel® Celeron™ J1900 on-board SoC with VGA, iDP, Dual Intel® PCIe GbE, USB 3.0, PCIe Mini, SATA, mSATA, COM, CF, Audio and RoHS
      WSB-BT-N28071-R10Full-size PICMG 1.0 CPU card supports Intel® Celeron™ N2807 on-board SoC with VGA, iDP, Dual Intel® PCIe GbE, USB 3.0, PCIe Mini, SATA, mSATA, COM, CF, Audio and RoHS
    • Package Contents

      • 1 x WSB-BT single board computer

      • 1 x Dual RS-232 cable with bracket

      • 1 x SATA cable

      • 1 x QIG
