End of Life Notice
* Effective Date: 2017/12/15

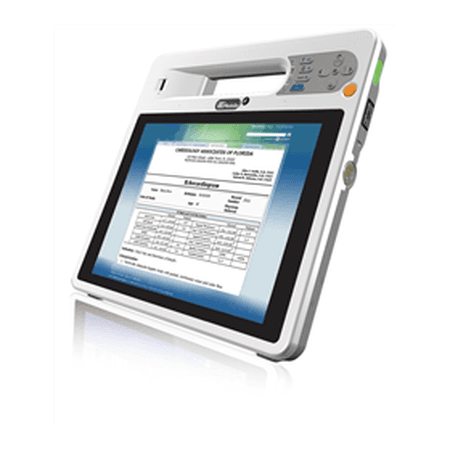

» 10.4” TFT XGA LCD
» Intel® Atom™ N2800 1.86GHz processor
» Powered by Windows® Embedded Standard 7 P
» Built-in 8GB mSATA storage
» Bluetooth, Wi-Fi, 3.75G wireless
» 1D/2D barcode reader, 13.56MHz RFID reader
» Dual-mode input (digitizer + capacitive touch)
» Dual hot-swappable battery
» Dual Camera:
1.3-megapixel front camera
3.0-megapixel rear camera
Hardware Spec.
| Display | |
|---|---|
| Brightness(cd/m2) | 350 |
| LCD Size | 10.4" |
| Max Resolution | 1024 x 768 pixels XGA |
| Touch Screen | Projected Capacitive |
| Viewing Angle | 88/88/88/88 Deg. |
| Environment | |
| Humidity | 5%~95% non-condensing |
| Operating Temperature | 0ºC to +40ºC |
| I/O Interface | |
| I/O Interface | 1 x WIFI(802.11b/g/n) |
| 1 x USB 3.0 | |
| 1 x Speaker(2W) | |
| 1 x LAN(10/100/1000 Mbps) | |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 270 x 265 x 29 |
| Net Weight | 1.7 kg |
| Power | |
| Battery | Dual 11.1V 1880mAh Li-ion Battery |
| Power adapter | 12V @ 5A @ 60W |
| System | |
| Chipset | Intel® NM10 |
| CPU | 1.86GHz Intel® Atom™ N2800 |
| On-board Memory | 1333MHz 4GB DDR3 SDRAM |
Ordering Information
| ICEFIRE2-T10-HU-R11 | Intel® Atom™ N2800 1.86GHz CPU, Capacitive Multi-Touch, Digitizer Dual Mode, 4GB RAM, 8G SSD,3.75G HSUPA, 802.11 b/g/n&BT, 1D/2D Barcode, RFID, WES7P, RoHs, New Fingerprint |
|---|---|
| ICEFIRE2-T10-TR-R11 | Intel® Atom™ N2800 1.86GHz CPU, Capacitive Multi-Touch, 4GB RAM, 8G SSD,802.11 b/g/n&BT, 1D/2D Barcode, RFID, WES7P, RoHs, New Fingerprint |
| ICEFIRE2-T10-ET-R11 | Intel® Atom™ N2800 1.86GHz CPU, Capacitive Multi-Touch, 4GB RAM, 8G SSD,802.11 b/g/n&BT, WES7P, RoHs |
