IMB-H610A/IMB-H610B

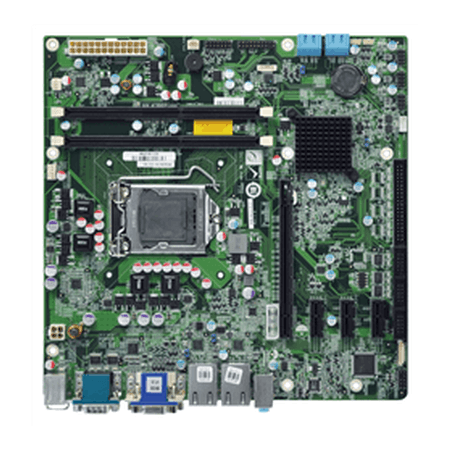

microATX motherboard supports LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU with Intel® H61

End of Life

End of Life Notice

* Effective Date: 2019/08/29

» LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celecron® processor supported
» Up to 16 GB 1333 MHz dual-channel DDR3 SDRAM
» Intel® HD Graphics technology integrates high-performance graphics and media processing
» TMP V1.2 hardware security provided by the TPM module
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

CPU Cooler
CPU Cooler CF-1156A-RS-R11
CF-1156C-RS
CF-1156D-RS
CF-1156E-R11
Display
Display Dual display supported
1 x VGA (up to 2048 x 1536 @75Hz)
1 x DVI-D (up to 1920 x 1200 @60Hz)
Environment
Humidity 10% ~ 95%, non-condensing
Operating Temperature -10°C ~ 60°C
Expansion Slots
Expansion Slots 1 x PCIe x16 slot
3 x PCIe x1 slot
I/O Interface
Audio Realtek ALC662 HD audio codec (Line-in,
Line-out, Mic)
Digital I/O 8-bit programmable I/O
Ethernet LAN1: Realtek RTL8111E PCIe GbE controller with
ASF 2.0 support
I/O Interface
I/O Interface 1 x I²C
6 x Internal USB 2.0
5 x RS-232
1 x SMBus
4 x USB 2.0
Power
Power consumption 3.3V@1.75A, 5V@6.61A , Vcore@3.68A,
12V@0.09A, 5sb@0.12A (Intel® 2.60GHz
CPU with two 1333MHz 4GB DDR3 memory)
System
Chipset Intel® H61
CPU Intel® Core™ i7/i5/i3 quad/
dual, Pentium® dual and Celeron® dual/single core
processors
CPU Socket LGA1155
Memory Max. Two 240-pin 1333/1066 MHz dual-channel unbuffered
DDR3 SDRAM DIMMs supported (system max. 16GB)
Storage 4 x SATA 3Gb/s without RAID & AHCI
Watchdog Timer
Watchdog Timer Software programmable supports 1~255 sec

Ordering Information

IMB-H610B-R10 microATX motherboard supports LGA1155 Intel Core i7/i5/i3/Pentium/Celeron CPU with Intel H61, DDR3, VGA/DVI-D, Dual Realtek PCIe GbE, USB 2.0, 10xCOM, SATA 3Gb/s, HD Audio and RoHS
IMB-H610A-R10 Micro ATX Motherboard supports 32nm LGA1155 Intel Core i7/i5/i3/Pentium/Celeron CPU with Intel H61,DDR3,VGA/DVI-D,Dual Realtek PCIe GbE, USB 2.0, 6xCOM,SATA 3Gb/s, HD Audio and RoHS

Package Contents

Package Content
  • 1 x IMB-H610 single board computer

  • 1 x I/O shielding

  • 1 x Mini jumper pack

  • 4 x SATA cable

  • 1 x QIG
