KINO-DH310

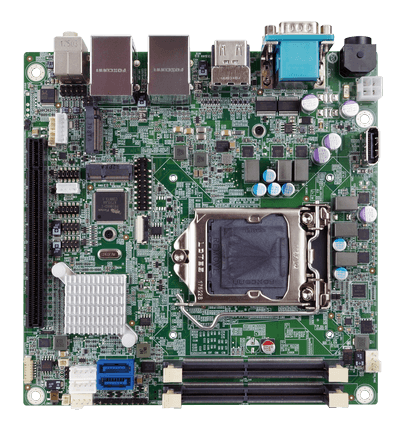

Mini-ITX SBC supports 14nm LGA1151 Intel® 8th Generation Core™ i7/i5/i3, Celeron® and Pentium® processor, DDR4, dual independent displays, dual GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS

  • Overview

    ● LGA1151 Intel® 8th Generation Core™ i7/i5/i3, Celeron® and Pentium® processor
    ● Dual-channel DDR4 2666MHz
    ● Support eDP & Dual HDMI
    ● Support M.2 A Key for WLAN expansion & M key for storage
  • Features

    KINO-DH310 single board computer banner

    Features

    KINO-DH310 single board computer features

    Dimensions

    KINO-DH310 Single board computer Dimensions
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Dimensions
      Dimensions 170mm x 170mm
      Display
      Display Output Dual independent display
      2 x HDMI (up to 4096x2160@30Hz)
      1 x internal Displayport (up to 4096x2304@60Hz) (optional)
      Environment
      Humidity 5% ~ 95%, non-condensing
      Operating Temperature 0ºC ~ 60ºC
      Storage Temperature -10°C ~ 70°C
      Expansion Slots
      Expansion Slots 1 x PCIe x16
      1 x M.2 M key (2280, Gen2 PCIe x2 only)
      1 x M.2 A Key (2230, PCIe x1 & USB 2.0)
      I/O Interface
      Audio Realtek ALC662 HD codec
      2 x Audio Jack (Lin-out, Mic-in)
      1 x Front audio (2x5 pin)
      Digital I/O 8-bit digital I/O (2x5 pin)
      Ethernet LAN1: Realtek RTL8111H PCIe GbE controller
      LAN2: Realtek RTL8111H PCIe GbE controller
      I/O Interface
      I/O Interface 1 x Front panel(1x10 pin, Power LED, HDD LED, Power Button, Reset Button)
      1 x I²C(1x4 pin)
      1 x Internal RS-232(2x5 pin, P=2.0)
      1 x Internal RS-422/485(1x4 pin, P=2.0)
      4 x Internal USB 2.0(2x4 pin, P=2.0)
      1 x KB/MS(1x6 pin)
      2 x LAN LED(1x2 pin)
      2 x RS-232
      2 x SATA 6Gb/s(No RAID)
      1 x SMBus(1x4 pin)
      4 x USB 3.0
      Power
      Power consumption 12V@11.32A (Intel® Core™ i7-8700 up to 4.60 GHz CPU with two 8GB 2666MHz
      DDR4 memory)
      Power Supply DC 12V input
      1 x External DC jack (4-pin DIN)
      1 x Internal power connector (2x2 pin)
      Support AT/ATX mode
      System
      Chipset Intel® H310
      CPU LGA1151 socket supports 8th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor (35W/65W)
      Graphcis Controller Intel® HD Graphics Gen9 Engines with Low power 16 execution unit, supports
      DX11.3/12, OpenGL 4.3/4.4/4.5and OpenCL1.2/2.0/2.1
      Memory Max. Two 260-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered SO-DIMM slots
      supported up to 64GB
      Weight
      Weight GW:900g / NW:400g
    • Ordering Info.

      Item No. Description
      KINO-DH310-R10Mini-ITX SBC supports 14nm LGA1151 Intel® 8th Generation Core™ i7/i5/i3, Celeron® and Pentium® processor, DDR4, dual independent displays, dual GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS
    • Package Contents

      • 1 x KINO-DH130 single board computer

      • 1 x SATA cable

      • 1 x I/O Shielding

      • 1 x QIG
