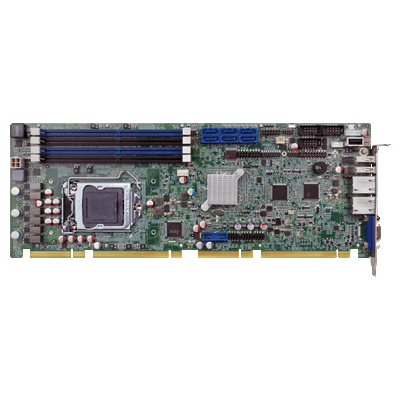

PCIE-Q370

Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Core™ i7/i5/i3/ Pentium®/Celeron® CPU per Intel® Q370, DDR4, VGA, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, PCIe mini, HD Audio, iAMT and RoHS

  • Overview

    ● PICMG 1.3 full-size CPU card
    ● LGA1151 Intel® 8th Generation Core™ i7/i5/i3, Celeron® and Pentium® processor supported
    ● Dual-channel DDR4 2666MHz
    ● Support VGA display
    ● Intel® PCIe GbE with Intel® AMT 11.0 supported
    ● Support M.2 M key for storage (PCIe x4)
    ● Supports RAID 0, 1, 5, 10 function via SATA 6Gb/s
  • Specifications

    • Hardware Spec.

      Spec Item Description
      BIOS
      BIOSAMI UEFI BIOS
      Dimensions
      Dimensions185 mm x 122 mm
      Display
      Display Output1 x VGA (up to 1920x1200@60 Hz)
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature-20°C ~ 60°C
      Expansion Slots
      Expansion Slots1 x M.2 M key
      1 x PCIe x16 & 4 x PCIe x1 signal via golden finger
      4 x PCI signal via golden finger
      I/O Interface
      AudioSupport 7.1 channel HD audio by IEI AC-KIT-892HD kit
      Digital I/O8-bit digital I/O (2x5 pin)
      EthernetLAN1: Intel® I219LM PHY
      LAN2: Intel® I211-AT PCIe controller (Co-lay I210-AT)
      Expansion1 x M.2 M key
      1 x PCIe x16 & 4 x PCIe x1 signal via golden finger
      4 x PCI signal via golden finger
      I²C1 x I²C (1x4 pin)
      I/O Interface
      I/O Interface1 x Front panel(Front panel (Power LED, HDD LED, Speaker, Power Button, Reset Button))
      1 x I²C(1x4 pin)
      3 x Internal RS-232(2x5 pin, P=2.54)
      1 x Internal RS-422/485((1x4 pin, P=2.0))
      6 x Internal USB 2.0(2x4 pin, P=2.54)
      2 x Internal USB 3.0(2x10 pin)
      1 x KB/MS(1x6 pin)
      2 x LAN LED(LAN LED (1x2 pin))
      6 x SATA 6Gb/s(RAID 0/1/5/10 supported)
      1 x SMBus(1x4 pin)
      1 x USB 2.0(USB 2.0 (Type A 180°))
      2 x USB 3.0(USB 3.0 (Rear IO type A))
      Power
      Power SupplyAT/ATX power supply
      Support AT/ATX mode
      ErP/EuP Compliant
      Storage
      Storage6 x SATA (SATA 6Gb/s) (RAID 0/1/5/10 supported)
      System
      ChipsetIntel® Q370
      CPULGA1151 socket supports 8th generation Intel® Core® i7/i5/i3, Pentium® or Celeron® processor
      Graphcis ControllerIntel® HD Graphics Gen 9 Engines with Low power 16 execution unit, supports DX2015, OpenGL 5.X and OpenCL2.x, ES 2.0
      Memory Max.Four 288-pin 2666MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64GB
      Watchdog Timer
      Watchdog TimerSoftware programmable support 1~255 sec. system reset
      Weight
      WeightGW: 1000g / NW: 500g
    • Ordering Info.

      Item No. Description
      PCIE-Q370-R10Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU per Intel® Q370, DDR4, VGA, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, PCIe mini, HD Audio, iAMT and RoHS
    • Package Contents

      • 1 x PCIE-Q370-R10 single board computer

      • 1 x SATA cable

      • 1 x Mini jumper pack

      • 1 x QIG (Quick Installation Guide)
