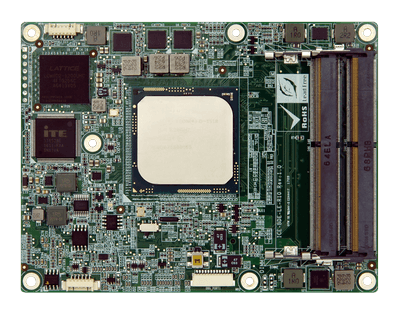

ICE-BDE-T7

COM Express Basic Size Type 7 Module Support, Intel® Broadwell-DE Processor D-1500

End of Life

End of Life Notice

* Effective Date: 2020/10/12

» COM Express basic size Type 7 module
» Intel® Xeon® D and Pentium® D SoC (up to 16 cores)
» Up to 32GB dual channel DDR4 at 1866/2133/2400MHz ECC (dependent on SoC SKU)
» Two 10G Ethernet and NC-SI support
» Up to 32 PCIe lanes (24 x Gen3, 8 x Gen2)
» GbE, two SATA 6Gb/s, four USB 3.0/2.0

Hardware Spec.

System
CPU Intel® Xeon® D processor D-1548 (12MB Cache, 2.00GHz)
Intel® Xeon® D processor D-1518 (6MB Cache, 2.20GHz)
Intel® Xeon® D processor D-1508 (3MB Cache, 2.20GHz)
Memory Two 260-pin 1600/2133 MHz Dual-Channel DDR4 SDRAM supported Support ECC
Memory Max. 32GB
Physical Characteristics
Dimensions (LxWxH) (mm) 125 X 95
Net Weight 300g
Storage
Storage 2 x SATA :6Gb/s singal to base board
I/O Interface
Ethernet Description: Intel® I210
2 x 10G KR Interfaces
10G Sideband Signals
(10G_INT 10G_PHY_MDC/MDIO 10G_PHY_SEL 10G_PHY_RST
10G_LED_I2C 10G_SFP_I2C 10G_SDP)
I/O Interface 2 x Internal RS-232 :2-wire to base board
4 x Internal USB 2.0 to base board
4 x Internal USB 3.2 Gen1x1 :to base board (with 4 X USB 2.0)
Expansion 1 x PCIe x16 :Gen 3 (Bifurcatable to 2 x8, 1 x8 & 2 x4, or 4 x4)
1 x PCIe x8 :Gen 3 (Bifurcatable to 1 x8 & 2 x4)
8 x PCIe x1 :Gen2 signal to base board
Other Features
TPM on-Board SPI TPM 2.0
Power
Power Consumption 12V@2.15A, 5VSB0.28A, 5V0.03A
Power Supply 12V: 12V±5%, 5VSB: 5V±5%, RTC Battery: 2.0-3.3V
Environment
Operating Temperature -20°C ~ 60°C with air flow
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

ICE-BDE-T7-1508-R10 COM Express Basic size Type 7 Module support, Intel® Broadwell-DE Dual-core Pentium® Processor D1508(25W), Two ECC DDR4 SO-DIMM , GbE, 10G KR, NCSI, SATAIII, USB 3.0, PCIe Gen3, RoHS
ICE-BDE-T7-1518-R10 COM Express Basic size Type 7 Module support, Intel® Broadwell-DE Quad-Core Processor D-1518(35W), Two ECC DDR4 SO-DIMM , GbE, 10G KR, NCSI, SATAIII, USB 3.0, PCIe Gen3, RoHS
ICE-BDE-T7-1548-R10 COM Express Basic size Type 7 Module support, Intel® Broadwell-DE Eight-Core Processor D-1548(45W), Two ECC DDR4 SO-DIMM , GbE, 10G KR, NCSI, SATAIII, USB 3.0, PCIe Gen3, RoHS

Package Contents

Package Content
  • 1 x ICE-BDE-T7 single board computer

  • 1 x Heatsink

  • 1 x QIG
