  • Overview

    ● EPIC SBC supports 14nm Intel® Pentium®/Celeron®/Atom™ on-board SoC supports dual-channel DDR3L SO-DIMMs.
    ● Triple independent display support.
    ● Wide range 9V~30V DC input design.
    ● M.2 B Key slot with SIM sockets for 3G/LTE expansion.
    ● COM, USB 3.0, SATA 6Gb/s, M.2, eMMC 5.0 and audio support.
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Dimensions
      Dimensions115mm x 165mm
      Display
      DisplayTriple Independent Displays:
      1 x LVDS: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
      2 x HDMI (up to 3840x2160 @ 30Hz)
      1 x iDP interface for HDMI. LVDS, VGA, DVI, DP (up to 4096 x 2304 @60Hz) (colay with HDMI1)
      Display Output1 x 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)
      2 x HDMI (up to 3840x2160 @ 30Hz)
      1 x iDP interface for HDMI. LVDS, VGA, DVI, DP (up to 4096x2304@60Hz) (colay with HDMI1)
      Environment
      Operating Temperature-20°C ~ 70°C
      Storage Temperature-40°C ~ 85°C
      I/O Interface
      AudioRealtek ALC662 HD Audio Codec
      Digital I/O8-bit digital I/O (2x5 pin)
      Ethernet2x Intel® I211-AT PCIe controller
      Expansion1 x Full/Half-size PCIe Mini slot (with SIM holder)
      1 x M.2 2242 (B key, SATA, USB 2.0, USB 3.0 signal only)
      1 x Micro SD (Optional)
      1 x SIM holder (Optional)
      I²C1 x I2C (1x4 pin)
      I/O Interface
      I/O Interface4 x Internal RS-232(2x5 pin , p=2.0)
      2 x Internal RS-232/422/485(2x5 pin, p=2.0)
      2 x Internal USB 2.0(2x4 pin, P=2.0)
      1 x KB/MS(1x6 pin)
      2 x LAN LED(1x2 pin)
      2 x SATA 6Gb/s(with 5V power connector (no RAID))
      2 x USB 2.0
      2 x USB 3.0
      Power
      Power consumption12V@2.13A (Intel® Pentium® N4200 CPU with one 8GB 1600MHz DDR3L memory)
      12V@2.81A (Intel® Atom™ x7-E3950 CPU with one 8GB 1600MHz DDR3L memory)
      Power Supply9V~30V DC input
      1 x Internal power connector (2x2 pin)
      Support AT/ATX mode
      System
      CPUIntel® Pentium® N4200 on-board SoC (up to 2.5GHz, quad-core, 2M Cache, TDP=6W)
      Intel® Celeron® N3350 on-board SoC (up to 2.4GHz, dual-core, 2M Cache, TDP=6W)
      Intel® Atom™ x7-E3950 on-board SoC (up to 2.0GHz, quad-core, 2M Cache, TDP=12W)
      Intel® Atom™ x5-E3940 on-board SoC (up to 1.8GHz, quad-core, 2M Cache, TDP=9W)
      Intel® Atom™ x5-E3930 on-board SoC (up to 1.8GHz, dual-core, 2M Cache, TDP=6W)
      Graphcis ControllerIntel® HD Graphics Gen9 Low Power, 18 Execution Units
      4K Codec Decode & Encode for HEVC 4, H.264, VP8, SVC, MVC
      Memory Max.One 204-pin 1866/1600MHz Single-channel DDR3L SO-DIMM supports up to 8GB
      Watchdog Timer
      Watchdog TimerSoftware programmable, support 1~255 sec. system reset
      Weight
      WeightGW: 850g / NW: 350g
    • Ordering Info.

      Item No. Description
      NANO-AL-N1-R10EPIC SBC supports Intel® 14nm dual-core Celeron® N3350 2.3GHz on-board SoC with Dual HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS
      NANO-AL-N2-R10EPIC SBC supports Intel® 14nm quad-core Pentium® N4200 2.5GHz on-board SoC with Dual HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS
    • Package Contents

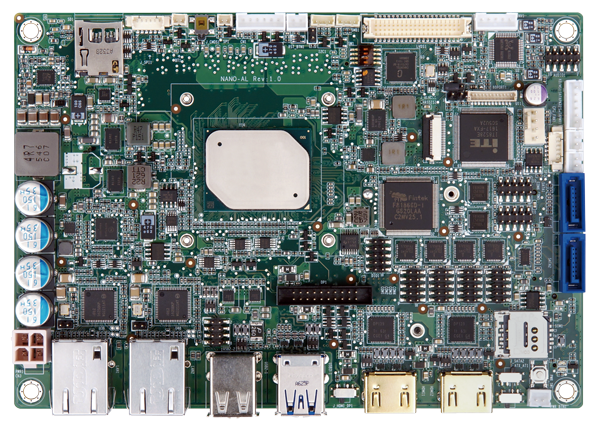

      • 1 x NANO-AL single board computer with Heatsink

      • 1 x Power cable

      • 1 x SATA with power cable kit

      • 1 x Screw set (for half-size PCIe Mini card)

      • 1 x QIG

      • 1 x RS-232 cable
