BIS-W19C-ULT4

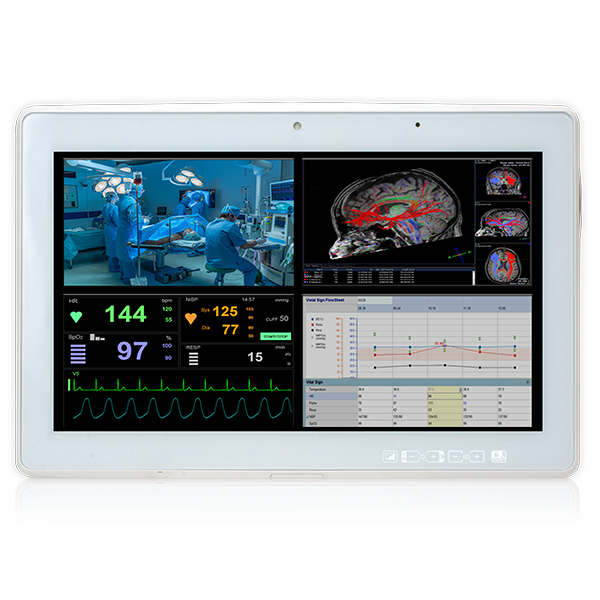

18.5” Medical Panel PC with 7th Generation Intel® mobile ULT Core™ i5/Celeron® processor

  • Overview

    ● 18.5” 16:9 LED panel (1366 x 768 / 1920 x 1080)
    ● 7th generation Intel® Core™ i5-7300U and Celeron® 3865U CPU
    ● Projected capacitive touchscreen supports multi-touch
    ● IP65 compliant front bezel
    ● Anti-bacteria cover
    ● HDMI input supported (monitor mode)
    ● Optional 3-in-1 card reader: MSR, SCR and fingerprint
    ● Optional Mifare RFID module
    ● Optional VoIP phone handset
    ● Optional handle module with barcode scanner and reading light
  • Features

    BIS-medical-panel-pc-banner
    medical-panel-pc-features

    It’s a medical grade PC as well as a monitor!

    not-only-medical-panel-pc-but-also-monitor

    Applications

    medical-panel-pc-application

    I/O Interface

    IEI-BIS-W19C-ULT4-medical-panel-pc-io-interface

    Dimensions

    medical-panel-pc-dimensions
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Communication
      BluetoothBluetooth V4.1
      Wi-FiIEEE 802.11 a/b/g/n/ac 2T2R module
      Display
      Backlight MTBF(hrs)30000 (LED backlight) / 50000 (LED backlight)
      Brightness(cd/m2)250/350
      Contrast Ratio1000:1
      LCD Size18.5” (16:9)
      Max Resolution1366 (W) x 768 (H) / 1920 (W) x 1080 (H)
      Environment
      Humidity10% to 95% (non-condensing)
      IP LevelIP65 compliant front panel
      Operating ShockOperating Shock: 5G peak acceleration (11ms duration)
      Non-Operating Shock: 15G peak acceleration (11ms duration)
      Operating Temperature0°C~40°C
      Operating Vibration1G
      Storage Temperature-20°C~60°C
      I/O Interface
      Audio2 x 2W speaker
      Side:1 x Audio out, 1 x Mic in
      EthernetRear:1 x GbE LAN port
      Bottom:1 x GbE LAN port
      Other Features
      Ambient Light SensorAmbient light sensor for panel brightness adjustment
      Camera2-megapixel CMOS front-facing camera with auto-focus and digital microphone
      LED Light BarRFID indicator LED
      OSD Function1 x LCD on/off
      1 x Brightness up
      1 x Brightness down
      1 x Volume up
      1 x Volume down
      1 x Touch lock button for cleaning
      Combinations:
      1 x Auto-dimming on/off
      Physical Characteristics
      ConstructionABS+PC plastic with anti-bacterial material
      Dimensions (LxWxH) (mm)478.6 x 317.3 x 60.1 mm
      MountingWall, Stand and Arm VESA 100/75
      Net Weight6.5 kg
      Power
      Input1 x 12~28V DC Jack
      Power adapter120W medical power adapter: Input: 100V~240V AC, Output: 19V DC
      System
      Cooling method / System FanFan-less
      CPUIntel® Kabylake ULT platform Core™ i5-7300U and Celeron® 3865U
      HDD1 x 2.5” SATA 6Gb/s HDD bay
      Memory Max.32G
      On-board MemoryTwo 260-pin 2133/1866 MHz dual-channel 4G DDR4 non-ECC unbuffered SO-DIMMs
      Touch
      Touch ScreenProjected capacitive type with USB interface
      I/O Interface
      I/O Interface1 x DC Input Jack
      2 x HDMI(1 x HDMI Input (side); 1 x HDMI Out (Bottom))
      2 x LAN(1 x rear,1 x bottom)
      1 x Line out
      2 x Mic(1 x digital microphone(front); 1 x side)
      1 x RS-232(rear 1.5kV isolation)
      2 x USB 2.0(2 x side)
      4 x USB 3.0(2 x rear,2 x bottom)
    • Ordering Info.

      Item No. Description
      BIS-W19CF-ULT4-C/PC/4G-R1018.5” 350 cd/m² 1920x1080 Panel PC with Intel® 14nm 7th Generation Mobile Celeron®3865U on-board processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac Wi-Fi module, PCAP touchscreen, 2M camera, microphone, R10
      BIS-W19CF-ULT4-i5/PC/4G-R1018.5” 350 cd/m² 1920x1080 Panel PC with Intel® 14nm 7th Generation Mobile Core™i5-7300U on-board processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac Wi-Fi module, PCAP touchscreen, 2M camera, microphone, R10
      BIS-W19C-ULT4-C/PC/4G-R1018.5” 250 cd/m² 1366x768 Panel PC with Intel® 14nm 7th Generation Mobile Celeron®3865U on-board processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac Wi-Fi module, PCAP touchscreen, 2M camera, microphone, R10
      BIS-W19C-ULT4-i5/PC/4G-R1018.5” 250 cd/m² 1366x768 Panel PC with Intel® 14nm 7th Generation Mobile Core™ i5-7300U on-board processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac Wi-Fi module, PCAP touchscreen, 2M camera, microphone, R10
    • Package Contents

      • 1 x power adapter

      • 1 x power cord
