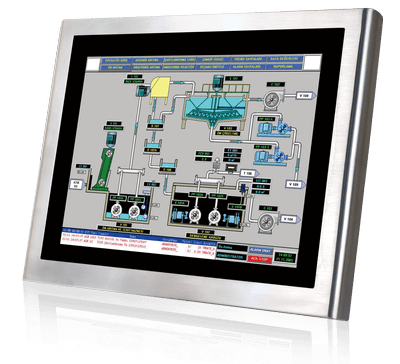

INOX-F15C-ULT3

Intel® Core™ i5 and Celeron® ULT Processor

● 15” fanless panel PC with Intel® Skylake ULT processor

● IP69K high pressure, high temperature protection

● SUS304 stainless steel housing

● Operating temperature : -20°C ~ 50°C

● Flat glass PCAP touch with 6H hardness, resistive touch window

● Accessible HDD Bay

● M12 connections

Spec Item	Description
Dimensions
Dimensions	414 x 328.4 x 51.9
Display
Backlight MTBF(hrs)	70000
Brightness(cd/m2)	450
Contrast Ratio	800:1
LCD Size	15”
Max Resolution	1024x768
Environment
IP Level	IP69K
Operating Temperature	-20°C ~ 50°C
Storage Temperature	-30°C ~ 60°C
Expansion Slots
Expansion Slots	1 x Full-size PCIe Mini card slot (SATA 6Gb/s) 1 x Full-size/half-size (PCIe x1 and USB 2.0 signals) 1 x M.2 B-key slot (2242/2260/2280 with USB 3.0, PCIe x2 and SATA signals)
I/O Interface
Ethernet	2 x PCIe GbE by Intel® I210 controller
Power
Power adapter	60W/12V waterproof power adapter VAC:90V~264V; 12V/5A; 60W
Power consumption	43W
Power Requirement	9-36V DC
System
Chipset	Intel® Skylake ULT
CPU	6th generation Intel® Core™ i5 and Celeron® ULT processor
Memory Ext.	4GB
Memory Max.	32GB
Storage	1 x 2.5” SATA SSD bay 1 x mSATA 1 x M.2 B-key (2242/2260/2280)
I/O Interface
I/O Interface	1 x DC Input Jack(5-pin M12)
2 x LAN(8-pin M12 X-Code)
1 x Power Switch
2 x RS-232(8-pin M12)
2 x USB 2.0(8-pin M12)

Spec Item

Description

Dimensions

414 x 328.4 x 51.9

Display

Backlight MTBF(hrs)

70000

Brightness(cd/m2)

450

Contrast Ratio

800:1

LCD Size

15”

Max Resolution

1024x768

Environment

IP Level

IP69K

Operating Temperature

-20°C ~ 50°C

Storage Temperature

-30°C ~ 60°C

Expansion Slots

1 x Full-size PCIe Mini card slot (SATA 6Gb/s)
1 x Full-size/half-size (PCIe x1 and USB 2.0 signals)
1 x M.2 B-key slot (2242/2260/2280 with USB 3.0, PCIe x2 and SATA signals)

I/O Interface

Ethernet

2 x PCIe GbE by Intel® I210 controller

Power

Power adapter

60W/12V waterproof power adapter
VAC:90V~264V; 12V/5A; 60W

Power consumption

43W

Power Requirement

9-36V DC

System

Chipset

Intel® Skylake ULT

CPU

6th generation Intel® Core™ i5 and Celeron® ULT processor

Memory Ext.

4GB

Memory Max.

32GB

Storage

1 x 2.5” SATA SSD bay
1 x mSATA
1 x M.2 B-key (2242/2260/2280)

I/O Interface

1 x DC Input Jack(5-pin M12)

2 x LAN(8-pin M12 X-Code)

1 x Power Switch

2 x RS-232(8-pin M12)

2 x USB 2.0(8-pin M12)

Item No.	Description
INOX-F15C-ULT3-C/PC/4G-R10	15" 450cd/m² XGA fanless Stainless panel PC with Intel® 14nm 6th Generation Mobile Celeron®3955U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, PCAP touch, R10
INOX-F15C-ULT3-i5/PC/4G-R10	15" 450cd/m² XGA fanless Stainless panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, PCAP touch, R10

Item No.

Description

INOX-F15C-ULT3-C/PC/4G-R10

15" 450cd/m² XGA fanless Stainless panel PC with Intel® 14nm 6th Generation Mobile Celeron®3955U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, PCAP touch, R10

INOX-F15C-ULT3-i5/PC/4G-R10

15" 450cd/m² XGA fanless Stainless panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, PCAP touch, R10
