• Overview

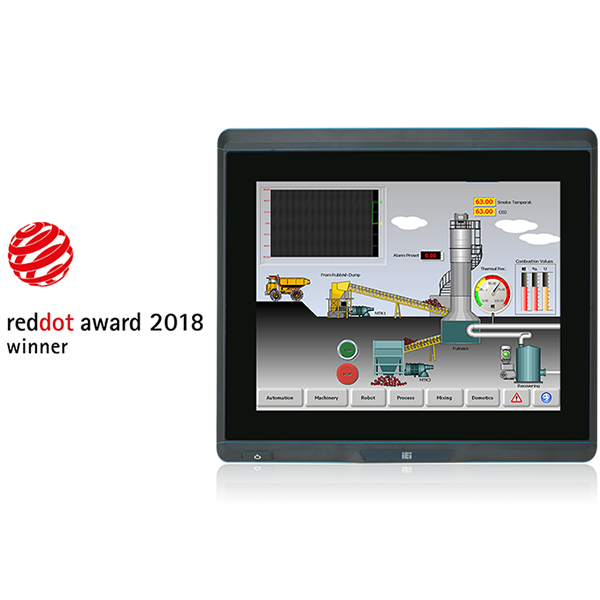

    ● 12.1” fanless panel PC with Intel® Skylake ULT processor
    ● IP66 6-side protection with M12 connector I/O cover
    ● IP65 6-side protection with standard cable I/O cover
    ● Built-in wireless 802.11 a/b/g/n/ac and Bluetooth V4.0
    ● Operating temperature : -20°C ~ 60°C
    ● Flat glass PCAP touch with 6H hardness, resistive touch window
  • Features

    Introducing & Set up: IEI Panel PC UPC-F12C-ULT3

  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      Storage1 x 2.5” HDD bay
      1 x M.2 (B key 2242 with USB 2.0 and SATA signal)
      On-board Memory1 x 260-pin 2133/1867 MHz single-channel 4GB DDR4 SO-DIMMs
      Expansion Slots
      Expansion Slots1 x M.2 (B key 2242 with USB 2.0 and SATA signal)
      Environment
      Humidity10% ~ 95% (non-condensing)
      Display
      Max Resolution1024(W) x 768(H)
      Power
      Power consumption12 V @ 5 A; 36 V @ 1.6 A
      Display
      LCD Size12.1”
      Backlight MTBF(hrs)16.2M
      Environment
      Operating Temperature-20ºC ~ 60ºC
      Storage Temperature-20ºC ~ 70ºC
      Physical Characteristics
      Dimensions (LxWxH) (mm)279x316x67
      Display
      Brightness(cd/m2)600
      System
      CPU6th generation Intel® Core™ i5 and Celeron® ULT processor
      Display
      Contrast Ratio700:1
      Communication
      Wi-Fi802.11 a/b/g/n/ac
      Physical Characteristics
      ConstructionAluminum die-casting
      ColorBlack
      Communication
      BluetoothBluetooth v4.0
      Environment
      Safety & EMCCE & FCC
      System
      Cooling method / System FanFanless
      I/O Interface
      EthernetLAN1: PCIe GbE by Intel® I211 controller
      LAN2: PCIe GbE by Intel® I211 controller
      I/O PortsM12 Type:
      1 x 8-pin M12 connector for RS-232
      1 x 8-pin M12 connector for RS-232/422/485
      1 x 8-pin M12 connector for GbE LAN
      2 x 8-pin M12 connector for two USB 2.0
      1 x 5-pin M12 connector for DC jack (12V~36V DC)

      Standard Type:
      1 x DC jack (12V-36V DC)
      1 x DC-in terminal block
      (12V-36V DC)
      1 x HDMI
      1 x VGA
      1 x RS-232 (COM1 RJ-45)
      1 x RS-232/422/485 (COM2 RJ-45)
      2 x LAN
      2 x USB 2.0
      2 x USB 3.0
      Power
      InputPower 1: 12V ~ 36V (terminal block)
      Power 2: 12V ~ 36V (DC jack)
      System
      ChipsetSoC
      Physical Characteristics
      Net Weightstandard: 5.02kg
      M12: 4.95kg
      Environment
      IP Levelstandard: 5-side IP66 (IP65 I/O panel)
      M12: 6-side IP66
      Physical Characteristics
      MountingVESA 100x100
    • Ordering Info.

      Item No. Description
      UPC-F12CM-ULT3-C/PC/4G-R1012.1" 600cd/m² XGA fanless ultra panel PC with Intel® 14nm 6th Generation Mobile Celeron®3955U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, M12 I/O, R10
      UPC-F12CM-ULT3-C/R/4G-R1012.1" 600cd/m² XGA fanless ultra panel PC with Intel® 14nm 6th Generation Mobile Celeron®3955U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, resistive touch, M12 I/O, R10
      UPC-F12CM-ULT3-i5/PC/4G-R1012.1" 600cd/m² XGA fanless ultra panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, M12 I/O, R10
      UPC-F12CM-ULT3-i5/R/4G-R1012.1" 600cd/m² XGA fanless ultra panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, resistive touch, M12 I/O, R10
      UPC-F12C-ULT3-C/PC/4G-R1012.1" 600cd/m² XGA fanless ultra panel PC with Intel® 14nm 6th Generation Mobile Celeron®3955U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, R10
      UPC-F12C-ULT3-C/R/4G-R1012.1" 600cd/m² XGA fanless ultra panel PC with Intel® 14nm 6th Generation Mobile Celeron®3955U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, resistive touch, R10
      UPC-F12C-ULT3-i5/PC/4G-R1012.1" 600cd/m² XGA fanless ultra panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, R10
      UPC-F12C-ULT3-i5/R/4G-R1012.1" 600cd/m² XGA fanless ultra panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, resistive touch, R10
    • Package Contents

      • 1 x Touch Pen (Resistive type only)

      • 2 x Ferrite core

      • 2 x D-Sub to RJ45 cable (for standard only)

      • Waterproof plugs: Φ3x2 Φ4x1, Φ5x1, cover x 6 (for standard only)

      • 1 x M12 to USB cable (for M12 only)
