HSC-13M4-E

USB 3.0 Monochrome Camera & Opto-isolated I/O, 1/1.8” E2V CMOS, Global Shutter, 1280x1024 Pixels, without Lens, RoHS

  • Overview

    ● Compact 1/1.8”e2V CMOS sensor with global shutter
    ● Large pixel: 5.3 µm / Frame rate: 60fps / Resolution: 1280x1024
    ● High bandwidth, provides power and data over a single cable.
    ● Lower cost implementation, Plug-and-play and easier to set up.
    ● Adopted as “USB3 Vision” standard and supported vision software such as Halcon, Merlic, MIL, NI LabVIEW.
  • Features

    HSC-13M3-O and HSC-13M4-E High Speed USB3 Industrial Cameras

    High compliance to 3rd party vision library

    The architecture of the IEI Camera is based on USB3 Vision and GenICam standard, which offers you compatible interface with name-brand machine vision software such as MVtec Halcon, MERLIC, NI-LabVIEW, MIL …etc.

    High compliance to 3rd party vision library

    Application

    industrial-camera-application

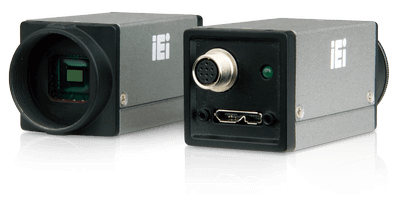

    External Overview

    External Overview
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Appearance
      Dimension29 mm x 29 mm x 57 mm
      Net Weight85g
      Capture Interface
      Interface Type1 x USB3.0
      Certifications
      Safety & EMCCE/EMC, FCC
      LED SafetyCE/LVD
      Environment
      Operating Temperature0° ~ 50°C
      Storage Humidity30% ~ 95%
      Storage Temperature-30° ~ 60°C
      Operating Humidity20% ~ 80%
      I/O Interface
      I/O Interface1 x Trigger connection(IO connecting cable with an 8-pin male connector)
      Others
      Power Requirements5V via USB 3.0 or 6-18V via Opto-isolated input
      Parameters
      Opto-isolated I/O Ports1 input, 1 output
      ADC8-bit/10-bit
      Pixel Size5.3µm
      Readout MethodGlobal shutter
      Resolution1280 x 1024
      Sensor NameE2V EV76C560
      Sensor TypeCMOS
      Non-isolated I/O Ports1 x RS-232
      Sensor Size (inch)1/1.8"
      Auxiliary Output5V, 100 mA max
      ChromaMono
      ComplianceCE, FCC
      Frame Rate60FPS (Max)
      InterfaceUSB3 Vision v1.0
      Lens MountCS-mount
      Megapixels1.3-megapixel
      Software Support
      SDKWindows
      OS SupportMicrosoft Windows 10 32-bit
      Microsoft Windows 10 64-bit
      Microsoft Windows 7 32-bit
      Microsoft Windows 7 64-bit
      Microsoft Windows 8.1 32-bit
      Microsoft Windows 8.1 64-bit
      Sensor Specifications
      AcquisitionContinuous, Single Frame, Multi Frame
    • Ordering Info.

      Item No. Description
      HSC-13M4-E-R10USB3.0 Monochrome Indutrial camera,1/1.8-inch/1280 x 1024 pixel,60FPS/E2V/CMOS
    • Package Contents

      • 1 x HSC-13M4-E

      • 1 x Mounting bracket

      • 1 x CS to C mount adapter

      • 1 x QIG
