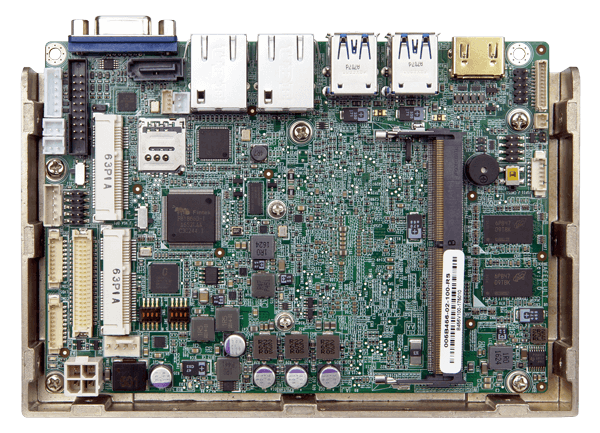

WAFER-ULT3

3.5” SBC supports Intel® 6th Generation ULT Processor with DDR4 SO-DIMM/On-board Memory Support

  • Overview

    ● 3.5” SBC with Intel® 6th Generation ULT processor supports DDR4 SO-DIMM (on-board memory support by request)
    ● Triple display with VGA/iDP, HDMI and LVDS selection
    ● Two PCIe Mini with mSATA/SIM card slot support
    ● Intel® GbE LAN with Intel® AMT 11.0 supported
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPU6th generation Intel® mobile ULT processor
      Intel® Core™ i7-6600U (up to 3.4GHz, dual-core, 4MB cache, TDP=15W)
      Intel® Core™ i5-6300U (up to 3.0GHz, dual-core, 3MB cache, TDP=15W)
      Intel® Core™ i3-6100U (up to 2.3GHz, dual-core, 3MB cache, TDP=15W)
      Intel® Celeron® processor 3955U (up to 2.0GHz, dual-core, 2MB cache, TDP=15W)
      Intel® Celeron® processor 3855U (up to 1.6GHz, dual-core, 2MB cache, TDP=15W)
      Memory Max.1 x 260-pin 2133MHz DDR4 SDRAM SO-DIMM (channel 1, supports up to 16GB)
      On-board 4GB/8GB DDR4 memory (channel 2, optional support by request)
      I/O Interface
      Ethernet1 x Intel® I219LM
      1 x Intel® I211AT
      Digital I/O1 x 8-bit digital I/O (2x5 pin)
      DisplayTriple independent display
      1 x VGA (up to 1920x1200@60Hz)
      1 x HDMI (up to 4096x2160@30Hz)
      1 x 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)
      1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (co-layout with VGA)
      Audio1 x HD audio (2x5 pin, supports 7.1-channel HD audio by AC-KIT-892HD-R10)
      Expansion1 x Full-size PCIe Mini slot (w/ SATA signal, supports mSATA)
      1 x Full-size PCIe Mini slot (w/ SIM card slot support)
      *3855U belongs to Skylake ULT Base series which supports PCIe Gen 2 signal only.
      Power
      Power consumption12V@4.27A (Intel® Core™ i7-6600U up to 3.4GHz CPU with 16GB 2133MHz DDR4
      memory running in 3.0GHz)
      Power Supply12V only DC input
      1 x Internal power connector (2x2 pin, or optional terminal block)
      Environment
      Operating Temperature-20°C ~ 60°C
      Safety & EMCCE/FCC compliant
      Humidity5% ~ 95%, non-condensing
      Storage Temperature-20°C ~ 60°C
      Dimensions
      Dimensions146mm x 102mm
      Weight
      WeightGW: 600g / NW: 250g
      Watchdog Timer
      Watchdog TimerSoftware programmable, supports 1~255 sec. system reset
      I/O Interface
      I/O Interface4 x USB 3.0(External I/O)
      2 x Internal USB 2.0(2x4 pin, P=2.0)
      2 x Internal RS-232/422/485(1x9 pin, P=1.25)
      1 x SMBus(1x4 pin, P=2.0)
      1 x SATA 6Gb/s(6Gb/s with 5V SATA power connector)
    • Ordering Info.

      Item No. Description
      WAFER-ULT3-C-R103.5" SBC supports Intel® 6th Generation ULT Celeron® 3955U processor with DDR4 SO-DIMM, triple display with VGA/iDP, HDMI, LVDS, Dual GbE, PCIe mini with SIM card slot/mSATA support, SATA 6Gb/s, COM, and RoHS
      WAFER-ULT3-i3-R103.5" SBC supports Intel® 6th Generation ULT Core™ i3-6100U processor with DDR4 SO-DIMM, triple display with VGA/iDP, HDMI, LVDS, Dual GbE, PCIe mini with SIM card slot/mSATA support, SATA 6Gb/s, COM, and RoHS
      WAFER-ULT3-i7-R103.5" SBC supports Intel® 6th Generation ULT Core™ i7-6600U processor with DDR4 SO-DIMM, triple display with VGA/iDP, HDMI, LVDS, Dual GbE, PCIe mini with SIM card slot/mSATA support, SATA 6Gb/s, COM, and RoHS
      WAFER-ULT3-i5-R103.5" SBC supports Intel® 6th Generation ULT Core™ i5-6300U processor with DDR4 SO-DIMM, triple display with VGA/iDP, HDMI, LVDS, Dual GbE, PCIe mini with SIM card slot/mSATA support, SATA 6Gb/s, COM, and RoHS
      WAFER-ULT3-CE-R103.5" SBC supports Intel® 6th Generation ULT Celeron® 3855U processor with DDR4 SO-DIMM, triple display with VGA/iDP, HDMI, LVDS, Dual GbE, PCIe mini with SIM card slot/mSATA support, SATA 6Gb/s, COM, and RoHS
    • Package Contents

      • 1 x WAFER-ULT3 single board computer with heat spreader

      • 1 x Power cable

      • 1 x RS-232/422/485 cable

      • 1 x QIG

      • 1 x SATA with power cable kit
