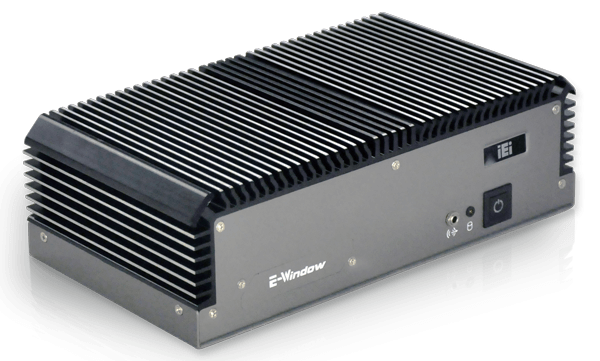

• Overview

    ● On-board CPU
    » i5-6300U dual-core up to 3.0GHz
    » 3855U dual-core up to 1.6GHz
    ● Two 2.5"" SATA 6Gb/s HDD/SSD drive bay
    ● Operating temperature: -20°C ~ 60 °C
    ● Two flexible E-Window for modularized expansion I/O
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      SBC Form Factor Refer to SBC
      I/O Interface
      I/O Ports 4 x USB3.0
      2 x LAN
      1 x RS-232/422/485
      2 x RS-232
      1 x 8-bit digital I/O
      2 x HDMI
      1 x Line-out
      2 x 802.11b/g/n (optional)
      Expansion Slots
      Expansion Slots 1 x Full-size PCIe Mini card slot (with SIM holder & mSATA support)
      1 x Half-size PCIe Mini card slot
      System
      Cooling method / System Fan Fanless
      Drive Bays 2 x 2.5” SATA HDD bay(No RAID support)
      Indicator&Buttons
      Buttons Power switch
      Indicators Power, HDD
      Physical Characteristics
      Construction SECC
      Color
      Color Black
      Dimensions
      Dimensions 255 x 130 x 75
      Weight
      Weight 2.2 kg/ 3kg
      Environment
      Operating Temperature -20°C ~ 60°C with air flow (SSD)
      Humidity 5% ~ 95%, non-condensing
    • Ordering Info.

      Item No. Description
      ECN-360A-ULT3-i5/4G-R10Fanless System with Intel® Core™ i5-6300U up to 3.0GHz , TDP 15W, 2 x GbE LAN port , 2 x HDMI, 2 x 2.5'' SATA HDD bay, 4GB memory pre-installed,12V DC, RoHS
      ECN-360A-ULT3-CE/WD/4G-R10Fanless System with Intel® Celeron® 3855U up to 1.6GHz , TDP 15W, 2 x GbE LAN port , 2 x HDMI, 2 x 2.5'' SATA HDD bay, 4GB memory pre-installed, 9~36V DC, RoHS
      ECN-360A-ULT3-i5/WD/4G-R10Fanless System with Intel® Core™ i5-6300U up to 3.0GHz , TDP 15W, 2 x GbE LAN port , 2 x HDMI, 2 x 2.5'' SATA HDD bay, 4GB memory pre-installed, 9~36V DC, RoHS
      ECN-360A-ULT3-CE/4G-R10Fanless System with Intel® Celeron® 3855U up to 1.6GHz , TDP 15W, 2 x GbE LAN port , 2 x HDMI, 2 x 2.5'' SATA HDD bay, 4GB memory pre-installed, 12V DC, RoHS
    • Package Contents

      • 1 x Screw set

      • 1 x Wall mount bracket
