POC-W24C-ULT3

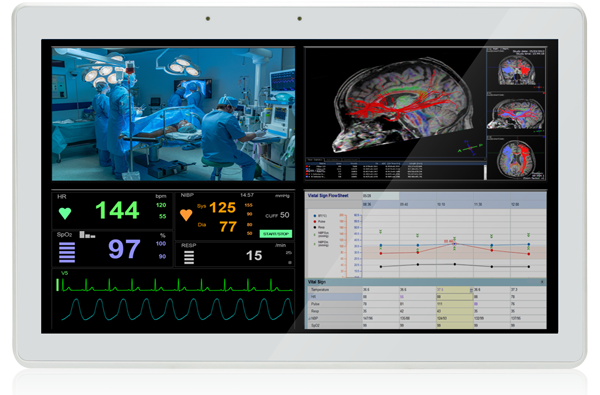

24” Medical Panel PC with 6th Generation Intel® mobile ULT Core™ i7/i5/Celeron® processor

  • Overview

    ● 24” fanless FHD medical grade panel PC
    ● Intel® Core™ i5-6300U (Skylake) processor
    ● PCAP touch allows multi-touch, multi-layer gloves and water on screen operation
    ● Anti-bacteria housing with IP65 front bezel and IP32 rear cover protection
    ● E-Window expansion slot
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      Cooling method / System FanFanless
      CPU6th generation Intel® mobile ULT Core™ i7-6600U / Core™ i5-6300U /Celeron® 3855U
      7th generation Intel® mobile ULT Kaby Lake on-board SoC (by project base)
      Storage1 x 2.5” SATA 6Gb/s HDD bay
      1 x mSATA (E-Window)
      Communication
      BluetoothV4.1 (M.2 2230 A-E key module)
      Wi-FiIEEE 802.11 a/b/g/n/ac 2T2R module
      I/O Interface
      Audio2 x 3W Speaker
      Expansion1 x PCIe Mini reserved for E-Window expansion
      RAMTwo 260-pin 1600/1333MHz dual-channel DDR4 SO-DIMM, 4GB pre-installed (system max. 32GB)
      I/O Ports and Switches1 x RJ-11 for 1D/2D barcode reader
      4 x USB 2.0 (2 on the side)
      4 x USB 3.0 port
      1 x HDMI output
      2 x GbE LAN port
      1 x RS-232/422/485
      1 x 12~28V DC jack
      Environment
      Operating Temperature0°C~40°C
      Humidity10% to 95% (non-condensing)
      Storage Temperature-20°C~60°C
      IP LevelIP65 compliant front panel
      Physical Characteristics
      MountingWall, Stand and Arm VESA 100/75
      Dimensions (LxWxH) (mm)594.6 x 379.6 x 60.68
      Construction Front PanelABS+PC plastic with anti-bacterial material
      Weight
      Weight7.5 Kg
      LCD
      Size24”
      Resolution1920 (W) x 1080 (H)
      Brightness (cd/m2)250
      Contrast Ratio1000:1
      LCD Color16.7M colors (RGB 6-bit + HI_FRC)
      Pixel Pitch (mm)0.2745 (H) x 0.2745 (V)
      Viewing Angle (H-V)178°(H) / 178°(V)
      Backlight MTBF30000 (LED backlight)
      Touch
      Touch ScreenProjected capacitive type with 10-point multi-touch
      Other Features
      Camera5-megapixel CMOS front-facing camera with auto-focus and digital microphone
      System CoolingFanless
      Microphonedigital microphone
      Function Key
      Function Key1 x LCD on/off
      1 x Brightness up
      1 x Brightness down
      1 x Volume up
      1 x Volume down
      1 x Touch lock button for cleaning
      Combinations:
      1 x Lock/Unlock OSD
      1 x Power on/off
    • Ordering Info.

      Item No. Description
      POC-W24C-ULT3-C/PC/4G-R1024" 250cd/m² FHD Medical panel PC ,Intel Skylake Dual Core Celeron 3855U Processor (1.60 GHz), 1*4GB DDR4 , 802.11a/b/g/n/ac , PCAP touchscreen, 5M camera, microphone, R10
      POC-W24C-ULT3-i7/PC/4G-R1024" 250cd/m² FHD Medical panel PC ,Intel Skylake Dual Core Core™ i7-6600U Processor (2.60 GHz), 1*4GB DDR4 , 802.11a/b/g/n/ac , PCAP touchscreen, 5M camera, microphone, R10
      POC-W24C-ULT3-i5/PC/4G-R1024" 250cd/m² FHD Medical panel PC ,Intel Skylake Dual Core Core™ i5-6300U Processor (2.4 GHz), 1*4GB DDR4 , 802.11a/b/g/n/ac , PCAP touchscreen, 5M camera, microphone, R10
    • Package Contents

      • 1 x Power Adapter

      • 1 x Power Cord
