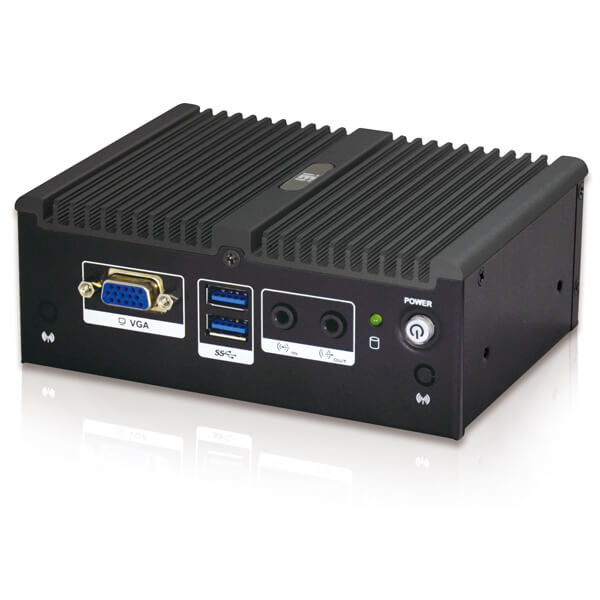

uIBX-250-BW-QGW

Ultra Compact Size

  • Overview

    ● Fanless system with Intel® Celeron® N3160 processor
    ● Dual display
    ● Two RS-232/422/485
    ● Full-size PCIe Mini slot for expansion
    ● Four USB 3.0 ports
    ● Two GbE LAN ports
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      SBC Form FactorIntelR CeleronR N3160
      (up to 2.24 GHz, quad-core, 2 MB cache, TDP=6W)
      System
      Cooling method / System FanFanless
      ChipsetSoC
      Memory Max.1 x 204-pin DDR3L 1.35 V SO-DIMM
      (system max: 8 GB) Pre-installed 2 GB
      Drive Bays1 x 2.5” SATA 6Gb/s HDD/SSD drive bay
      Indicator&Buttons
      IndicatorsHDD
      Buttons1 x Power button, 1 x AT/ATX switch
      I/O Interface
      Display1 x HDMI, 1 x VGA
      Audio1 x Line-out, 1 x Mic-in
      I/O Interface4 x USB 3.0
      2 x RJ-45 PCIe GbE by IntelR I211 controller
      2 x RJ-45 RS-232/422/485
      Serial2 x RS-232/422/485 (RJ-45)
      Power
      InputDC Jack: 12 V DC
      Power consumption12V @ 2A (Intel® Celeron® N3160 with 2 GB memory)
      Environment
      Operating Temperature-20°C ~60°C with air flow (SSD)
      Safety & EMCCE/FCC
      Humidity10% ~ 95%, non-condensing
      Dimensions
      Dimensions136.6 x 102.4 x 52
      Weight
      Weight470 g/1.4 kg
      Color
      ColorBlack
    • Ordering Info.

      Item No. Description
      uIBX-250-BW-QGW-R20Fanless embedded system with Intel(R) Celeron(R) N3160 1.6 GHz (up to 2.24 GHz, quad core, TDP 6 W), 4 GB DDR3L pre-installed
    • Package Contents

      • 1 x Power Adapter

      • 1 x Mounting Bracket

      • 2 x RS-232/422/485 round cable
