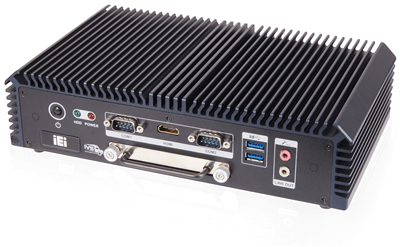

IVS-200-ULT2-QGW

Vehicle Surveillance System

  • Overview

    ● Intel® i5-5350U dual-core 1.8 GHz CPU or Intel® Celeron® 3755U dual-core 1.7 GHz CPU
    ● Four Intel® GbE LAN ports
    ● 9 V~36 V DC input
    ● Two RS-232/422/485
    ● E-Mark certification
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      SBC Form FactorIntelR Core i5-5350U (dual-core, 1.8 GHz, 15W TDP) or
      IntelR CeleronR 3765U (dual-core, 1.9 GHz, 15W TDP)
      System
      Cooling method / System FanFanless
      ChipsetSoC
      Memory Max.2 x 204-pin DDR3L SO-DIMM. 1 x 4GB pre-installed
      Drive Bays1 x 2.5” SATA 3Gb/s HDD/SSD drive bay
      I/O Interface
      Display1 x VGA
      1 x HDMI
      Audio1 x Line out, 1 x Mic in
      I/O Interface2 x USB3.0
      2 x USB2.0
      4 x RJ-45 GbE Lan
      2 x DB-9 RS-232/422/485
      3 x DB-9 RS-232 (optional)
      8 bit digital I/O (4-bit input, 4-bit output) (optional)
      1 x SIM slot
      Serial2 x DB-9 RS-232/422/485
      3 x DB-9 RS-232 (optional)
      8 bit digital I/O (4-bit input, 4-bit output) (optional)
      Power
      InputDC jack : 9 V~36 V DC
      Power consumption12 V @ 2.1 A (Intel® i5-5350U with 4 GB DDR3 memory)
      Environment
      Operating Temperature-20°C ~ 60°C with air flow (SSD)
      Safety & EMCCE/FCC/E-Mark
      Humidity5% ~ 95%, non-condensing
      Dimensions
      Dimensions255 x 63 x 150
      Weight
      Weight2.2 kg/3 kg
      Color
      ColorBlue C
      Expansion Slots
      Expansion Slots1 x Full-size PCIe Mini (reserved for WWAN or mSATA)
      1 x Half-size PCIe Mini (reserved for WLAN)
    • Ordering Info.

      Item No. Description
      IVS-200-ULT2-QGW-R10Fanless System with Intel® Core™ i5-5350U up to 2.9GHz, TDP 15W, 4 x GbE LAN port , 1 x HDMI, 1 x VGA, 2 x RS-232/422/485, 1 x 2.5'' removable SATA HDD bay, 8G memory pre-installed, with QTS-Gateway, 9~36V DC, RoHS
