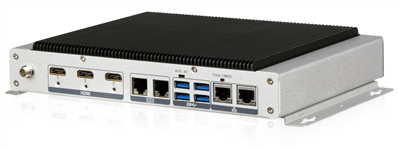

IDS-300-BW-QGW

Digital Signage System

  • Overview

    ● Fanless system with Intel® Celeron® N3160 processor
    ● Three HDMI ports
    ● Two full-size PCIe Mini slots for expansion
    ● Four USB 3.0 ports
    ● Two GbE LAN ports
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      SBC Form FactorCPU:IntelR CeleronR N3160
      (up to 2.24GHz, quad-core, 2MB cache, TDP=6W)
      System
      Cooling method / System FanFanless
      ChipsetSoC
      Memory Max.1 x 1600/1333 MHz DDR3L SO-DIMM,4 GB pre-installed (support up to 8GB)
      Drive Bays1 x 2.5” SATA 6Gb/s HDD/SSD Bay
      I/O Interface
      Display3 x HDMI
      Audio1 x Line-in, 1 x Line-out, 1 x Mic-in
      I/O Interface4 x USB 3.0
      2 X RJ-45 PCIe GbE by RTL8111E controller
      2 x RJ-45 RS-232
      1 x Power button
      Serial2 x RJ-45 RS-232
      Power
      InputDC Jack: 12 V DC
      Power consumption12 V@2.48 A
      (Intel® Celeron® N3160 with 4GB memory )
      Environment
      Operating Temperature-10°C ~ 40°C with air flow (SSD)
      Safety & EMCCE/FCC
      Humidity10% ~ 95%, non-condensing
      Dimensions
      Dimensions241 x 160 x 39
      Weight
      Weight1.8 kg/ 3kg
      Color
      ColorSilver
      Expansion Slots
      Expansion Slots1 x Full-size PCIe Mini
    • Ordering Info.

      Item No. Description
      IDS-300-BW-QGW-N3/4G-R10Fanless embedded system with Intel® Celeron N3160 1.6GHz, (up to 2.24 GHz, Quad Core, TDP 6W), pre-installed 4GB DDR3L memory, with QTS-Gateway, 12V DC, triple HDMI display, RoHS
    • Package Contents

      • 1 x Power Adapter

      • 1 x Mounting Bracket
