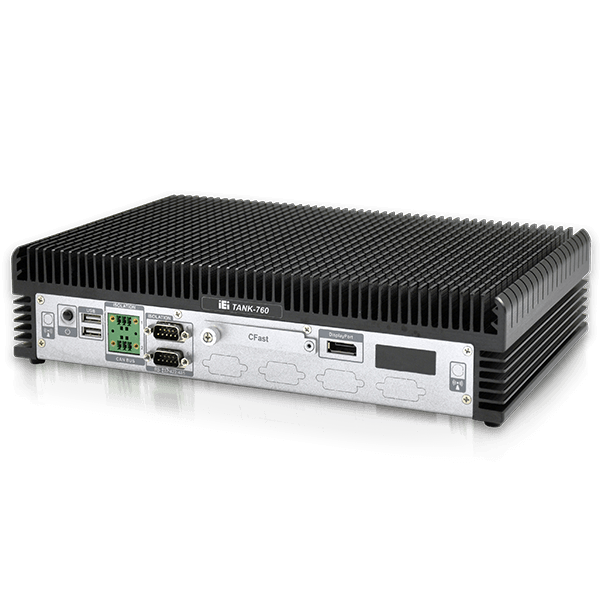

TANK-760-QGW

Cloud Based IPC built-in QTS Gateway OS for IIOT

  • Overview

    ●Built-in QTS Gateway operating system that can be visualized immediately
    ●Supports remote connection (myQNAPcloud) and hybrid backup (Hybrid Backup Sync)
    ●QRM+ easily monitors IPMI equipment, servers, PCs and production line equipment
    ●Q’center centralizes management of multiple QNAP NAS and the IPC equipped with QTS Gateway
    ●Surveillance Station for remote video surveillance, 24/7 security
    ●Seven levels of data security protection to protect your valued data
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      SBC Form FactorCPU: Intel® Core™ i5-4400E 2.7 GHz
      System
      Cooling method / System FanFanless
      ChipsetIntel® HM86
      Memory Max.2 x 204-pin DDR3 SO-DIMM preinstalled two 4 GB
      (Maximum memory size supported by the system is 16 GB)
      Drive Bays2 x 2.5” SATA 6Gb/s HDD/SSD bay
      StorageHDD: 2 x 2.5” SATA 6Gb/s HDD/SSD Bay
      1 x Cfast
      I/O Interface
      Display1 x VGA, 1 x HDMI, 1 x DisplayPort
      Audio1 x Line-out, 1 x Mic-in
      I/O Interface4 x USB 3.0
      2 x USB 2.0
      2 x RJ-45
      1 x PCIe GbE by Intel® I210
      1 x PCIe GbE by Intel® I217LM
      CAN-bus:2 x Phoenix terminal block with isolation
      1 x 802.11b/g/n (optional)
      Digital I/ODigital I/O:8-bit digital I/O, 4-bit input/4-bit output
      I/O OpeningsReserved IO window for PCIe Mini card expasion
      Serial4 x RS-232 (DB-9, with isolation)
      2 x RS-232/422/485 (DB-9, with isolation)
      Power
      InputDC Jack : 9V~36V DC
      Terminal Block : 9V~36V DC
      Power consumption19V@3.2A
      Environment
      Operating Temperature-20°C ~ 70°C with air flow (SSD) i5-4400E
      Safety & EMCCE/FCC
      Physical Characteristics
      ConstructionExtruded aluminum alloys
      Dimensions
      Dimensions310 x 200 x 62
      Weight
      Weight4.2 kg/6.9 kg
      Color
      ColorBlack C + Silver
      Expansion Slots
      Expansion SlotsPCIe Mini 2 x Full Size (one co-lay mSATA)
      Option
      iRIS1 x iRIS-2400 (Optional)
    • Ordering Info.

      Item No. Description
      TANK-760-QGW-i5/8G-R10Fanless embedded system, Intel® Core™ i5 dual-core i5-4400E 2.7 GHz, TDP 37W, 2 x 4GB DDR3 pre-installed memory, VGA/HDMI/DisplayPort, iRIS-2400 optional, with QTS-Gateway, 9 V~36 V DC, RoHs
    • Package Contents

      • 1 x Power Adapter

      • 1 x Chassis Screw

      • 1 x Power Cord

      • 1 x Mounting Bracket
