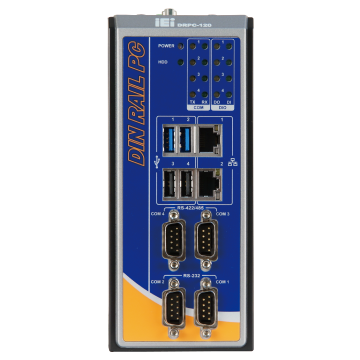

DRPC-120-QGW

Cloud Based IPC built-in QTS Gateway OS for IIOT

  • Overview

    ●Built-in QTS Gateway operating system that can be visualized immediately
    ●Supports remote connection (myQNAPcloud) and hybrid backup (Hybrid Backup Sync)
    ●QRM+ easily monitors IPMI equipment, servers, PCs and production line equipment
    ●Q’center centralizes management of multiple QNAP NAS and the IPC equipped with QTS Gateway
    ●Surveillance Station for remote video surveillance, 24/7 security
    ●Seven levels of data security protection to protect your valued data
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      SBC Form FactorCPU: Intel® Atom™ E3845 1.91 GHz
      System
      Cooling method / System FanFanless
      ChipsetSoC
      Memory Max.Two 2 GB 204-pin DDR3L SO-DIMM pre-installed
      Drive Bays1 x 2.5” SATA 6Gb/s HDD/SSD bay
      Indicator&Buttons
      IndicatorsPower/HDD/Com port/DIO
      I/O Interface
      Display1 x VGA, 1 x HDMI
      Audio1 x Line-out, 1 x Mic-in
      I/O Interface2 x USB 3.0
      2 x USB 2.0
      2 x RJ-45
      1 x PCIe GbE by Intel® I210 controller
      1 x PCIe GbE by Intel® I211 controller
      1 x 802.11b/g/n 1T1R (optional)
      Digital I/ODigital I/O:8-bit digital I/O, 4-bit input/4-bit output
      Serial2 x RS-232 (DB-9 w/3KV isolation protection*)
      2 x RS-422/485 (DB-9 w/3KV isolation protection*)
      Power
      Input3-pin terminal block: 9 V ~ 30 V DC
      Power consumption12V@2.1A
      Environment
      Operating Temperature-20°C ~ 70°C with air flow (SSD) i5-4400E
      Safety & EMCCE/FCC, MIL-STD-810F 514.5C-2 (with SSD)
      Physical Characteristics
      ConstructionExtruded aluminum alloys
      Dimensions
      Dimensions74.08 x 140 x 171.5
      Weight
      Weight1.4 kg/2.5 kg
      Color
      ColorBlack
      Expansion Slots
      Expansion Slots1 x Half-size PCIe Mini slot (w/o USB signal)
      Option
      iRIS1 x iRIS-2400 (Optional)
    • Ordering Info.

      Item No. Description
      DRPC-120-QGW-E5-LED/4G-R10Fanless embedded system with Intel® Bay-Trail E3845 1.91 GHz, TDP 10W,4 GB DDR3L pre-installed memory, with QTS-Gateway, 1 x VGA, 1 x HDMI, 8 CH DIO, iRIS-2400 optional,9 V~30 V DC, LED indicators, RoHs
    • Package Contents

      • 1 x Screw kit

      • 1 x Mounting bracket

      • 1 x SATA cable & SATA power cable
