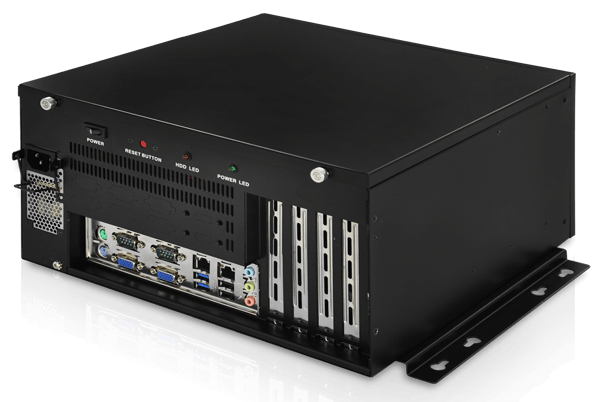

» RoHS compliant design
» Supports microATX motherboard
» One 3.5” HDD or one 2.5” HDD/SSD bay
» Four expansion slots
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor | microATX |
| I/O Interface | |
|---|---|
| I/O Ports | 2 x USB 6 x COM |
| Expansion Slots | |
|---|---|
| Expansion Slots | 4 |
| System | |
|---|---|
| Cooling method / System Fan | 1 |
| Drive Bays | 1 x 3.5”/2.5” HDD/SSD Expansion: 1 x 3.5”/2.5” HDD/SSD by the optional ECA-HDD-KIT-R10 |
| Indicator&Buttons | |
|---|---|
| Buttons | Power switch, reset button |
| Indicators | Power LED, HDD LED |
| Color | |
|---|---|
| Color | Black |
| Dimensions | |
|---|---|
| Dimensions | 310 mm x 310 mm x 162 mm |
| Environment | |
|---|---|
| Operating Temperature | -10°C ~ 50°C |
| Humidity | 5% ~ 95% |
