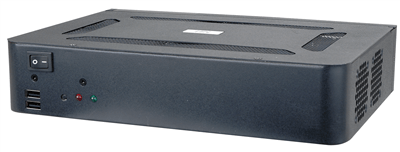

EBC-3200

Embedded Chassis for IEI Single V EBC-3200 oltage Mini-ITX SBC

  • Overview

    ● Designs for Mini-ITX SBC with single voltage input
    ● Flexible storage with CF or 2.5"" HDD (optional)
    ● One PCI or PCIe expansion slot (optional)
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      SBC Form Factor Refer to KINO Series
      SBC Size: Mini-ITX (170mm x 170mm)
      Expansion Slots
      Expansion Slots 1 x Low profile PCI/PCIe
      (support by optional modules)
      Max. dimensions: 147 mm (L) x 10.5 mm (D)
      System
      Cooling method / System Fan 2, 40 x 40 x 10
      Drive Bays 2 x 2.5” HDD bays (default)
      Varies by optional modules
      Indicator&Buttons
      Buttons Power switch,Reset
      Indicators Power LED,Error LED
      Physical Characteristics
      Construction Desktop, wall mount, VESA mount
      Color
      Color Black
      Dimensions
      Dimensions 260 x 180 x 55
      Weight
      Weight 1.1 kg/2 kg
      Environment
      Operating Temperature -10°C ~ 50°C with air flow*
    • Ordering Info.

      Item No. Description
      EBC-3200-R10Mini-ITX embedded chassis,compatible two 2.5" hdd,w/o power adapter,Black,RoHS
    • Package Contents

      • 1 x QIG

      • 2 x Wall mount brackets

      • 1 x Screw set
