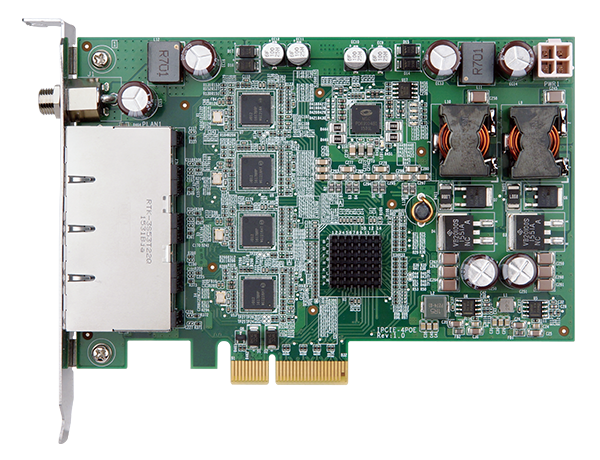

PCI Express Power over ethernet card

End of Life

End of Life Notice

* Effective Date: 2021/12/16

» PCI Express® x4 compliant
» Support for IEEE 802.3af for PoE (Power oveer Ethernet) with 15.4 watts per port
» Support link aggregation/jmbo frames (9 Kbyte)
» Supports 12~24 AT/ATX DC input power.

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 145 X 101.3
I/O Interface
Ethernet Description: Intel® i210 AT controller
9kB jumbo frame
IEEE 802.3az, IEEE1588
Power Supply 12~24V DC input
Internal DC input (2x2 ATX)
External DC input (Ø2.1/Ø5.5)
Operating Temperature 0°C ~ 60°C
Storage Temperature -10°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Safety & EMC CE/FCC compliant

Ordering Information

IPCIE-4POE-R10 PCI Express Power over ethernet card, 4-port 1000 Base(T), 802.3af compliant, RoHS

Package Contents

Package Content
  • 1 x IPCIE-4POE card

  • 1 x QIG
