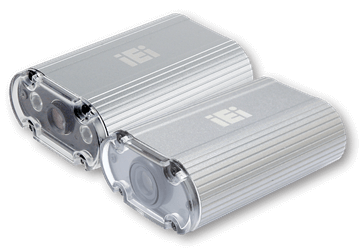

IoT High Speed 2D Barcode Reader

End of Life

End of Life Notice

* Effective Date: 2019/04/15

» Support remote monitoring and control via Android phones and tablets
» Connection I/O interface: USB, Ethernet TCP/IP
» Support hardware and software trigger modes, both with one shot, series shot, batch and presentation options
» Automatic or manual CMOS sensor configuration: exposure, gain and brightness options supported
» LED: External / Internal
» Image: Capture
» Image Format: BMP
» Region of Interest setting
» Firmware upgradable via USB / Ethernet
» Other Configurations: Decode Timeout / Decode Interval

Ordering Information

ITDB-100HD-R10 Image-based code reader system with 1D, 2D decoding code types;752x480;2LEDs,Reading distance(at code resolution): 20mm ~52mm,12VDC Input,RoHS,I/O with 1xUSB2.0, 1xDC jack(Φ2.5*Φ6.3),1x ethernet 1x6-pin trigger port,1x trig button
ITDB-100L-R10 Image-based code reader with 1D,2D decoding code types;752x480;2xLED,Reading distance(at code resolution):50mm~330mm,12V DC Input, RoHS,I/O interface with 1xUSB 2.0,1xDC jack(Φ2.5*Φ6.3),1x ethernet 1x6-pin trigger port,1x trigger button.

Package Contents

Package Content
  • 1 x ITDB-100 Series: ITDB-100L-R10/ ITDB-100HD-R10

  • 1 x Power Adapter (P/N: 63000-FSP040DGAA1106-RS)

  • 1 x Power Cord (US) (P/N: 32701-000700-100-RS)

  • 1 x Power Cord (EU) (P/N:32702-000200-100-RS)

  • 1 x Micro USB Cable (P/N:32001-016100-100-RS)

  • 1 x Ethernet Cable (P/N:32000-113100-RS)

  • 1 x Mounting Bracket (P/N:42010-0172E4-00-RS-N)

  • 1 x Mounting Bracket Screw(P/N:44045-020061-RS)

  • 1 x Trigger Connection Cable (P/N:32125-008200-100-RS)

  • 1 x User Manual

Download Specs.
