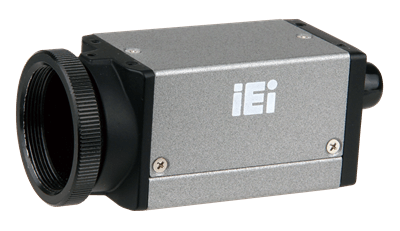

Lightweight USB 3.0 Camera, Micron MT9V022 CMOS, Global Shutter, 60 FPS at 752x480, without Lens

  • Overview

    ● IEI Vision SDK available
    ● Compact and lightweight industrial camera with Aptina global shutter CMOS sensor
    ● Compatible with USB 3.0 SuperSpeed specification
    ● Resolutions up to 752x480
    ● Frame rates up to 60 FPS
    ● Support AMCap and other DirectShow compatible software
    ● Other commercial vision software supported through DirecShow, ex: Halcon
    ● IEI Similarity technology can provide image enhancement
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Dimension58.9 mm x 29 mm x 29 mm
      Operating Temperature0°C ~ 45°C
      Storage Humidity20% ~ 95%
      Storage Temperature-30° ~ 60°C
      Operating Humidity20% ~ 80%
      Power Consumption<3.5W
      Power Requirements5V via external connector or USB 3.0
      Pixel Size6.0 µm
      Readout MethodGlobal shutter
      Resolution752 x 480
      Sensor NameMicron MT9V022
      Sensor TypeCMOS
      Auxiliary Output3.3 V, 100 mA max
      Sensor Size (inch)1/3-inch
      ComplianceCE, FCC
      Frame Rate60FPS
      InterfaceUSB 3.0 interface
      Lens MountCS-mount
      Megapixels0.3 MP
      Software Support
      SDK1 x Windows
      OS Support1 x Microsoft Windows 7 64-bit
      Operating System(Support UVC)
      1 x Microsoft Windows 10 64-bit
      1 x Microsoft Windows 8.1 64-bit
      1 x Microsoft Windows 8.1 32-bit
      1 x Microsoft Windows 7 32-bit
      1 x Microsoft Windows 10 32-bit
      System Requirement
      CPUIntel® Core™ i5 or above
      Memory2GB or more
    • Ordering Info.

      Item No. Description
      HSC-03M2-O-R10USB3.0 Monochrome Indutrial camera, 1/3" Aptina(On-semi) CMOS, 752x480 pixel, 60FPS
    • Package Contents

      • 1 x HSC-03M2-O

      • 1 x Mounting bracket

      • 1 x CS to C mount adapter

      • 1 x QIG
