IVC-200G-RS

PCI video Capture Card with Four Video Input Channels, Total 120 fps@720x480 (NTSC)

End of Life

End of Life Notice

* Effective Date: 2018/07/17

» Single card 4-channel composite video (NTSC/PAL) solution
» PCI Rev 2.1 compliance interface
» Compatible with Windows 98 SE, ME, 2000, XP / Linux kernel 2.4
» NTSC: Up to 120 fps per channel
» Supports multiple cards up to 16 channels video/audio input
» External GPIO daughter board with 4 inputs and 4 outputs (optional)
» SDK available for customer to create customized applications
Resource Download
QIG IVC-100-200QIG R21
User Manual M_PM-1056_ENG(v. 1.21a) for IVC-100/200
Driver/AP/SDK IVC-200 & 200G.rar

Hardware Spec.

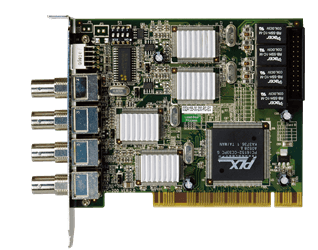

Appearance
Dimension 119.91 mm x 106.68 mm
Capture Interface
Alarm I/O GPIO daughter board with 4 inputs and 4 outputs(IVC-200G-RS-R20 only)
Card ID DIP switch selectable with LED for ID indication
Interface Type 1 x PCI(Rev 2.1 compliance)
Video Input 4 x Video Input Channel(composite video NTSC, PAL and SECAM auto sensing)
4 x Video Input-BNC
Environment
Operating Temperature 0°C ~ 60°C (32°F~140°F), non-condensing
Functionality
Multiple Card Support 4cards, 16 channels, QVGA (320 x 240), Total Frame (NTSC/PAL):480/400 fps
Video Loss Detection yes
Others
Power Consumption 15W, 3A@5V (with relay)
Software Support
SDK 1 x Windows
1 x Linux
OS Support 1 x Microsoft Windows XP
Operating System(Windows 98 ,SE, ME)
1 x Linux Ubuntu
1 x Linux Kernel(2.4)
1 x Microsoft Windows 2000
System Requirement
CPU x86 compatible computer
Graphic Card DirectX compatible VGA card supporting YUV overlay mode
Video Processing
Video Chipset 4 x Conexant Fusion BT878A
Video Compression 1 x Software Compression
Video Input Resolution 720 x 480 (NTSC/PAL/SECAM)
704 x 576 (PAL/SECAM)
720 x 576 (PAL/SECAM)
720 x 480 (PAL/SECAM)
720 x 288 (NTSC/PAL/SECAM)
720 x 240 (NTSC/PAL/SECAM)
640 x 480 (NTSC/PAL/SECAM)
640 x 288 (NTSC/PAL/SECAM)
640 x 240 (NTSC/PAL/SECAM)
352 x 288 (NTSC/PAL/SECAM)
352 x 240 (NTSC)

*NTSC: Up to 120 fps per channel
*PAL/SECAM: Up to 100 fps per channel

Ordering Information

IVC-200-RS-R20 4 channels Video Capture Card;NO GPIO,RoHS
IVC-200G-RS-R20 4 channels Video Capture Card;With GPIO,RoHS

Package Contents

Package Content
  • 1 x IVC-200G-RS-R20

  • 1 x GPIO daughter board with cable

  • 1 x QIG


Download Specs.
