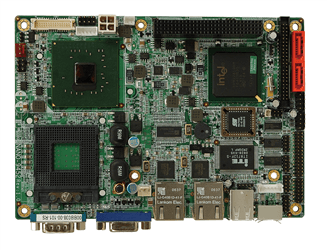

EPIC SBC with Intel® Core™2 Duo/Core™ Duo/Solo Processor

End of Life

End of Life Notice

* Effective Date: 2017/09/04

» Support Intel® Core™2 Duo, Core™ Duo/Solo processor with 667 MHz FSB
» VGA integrated in Intel® 945GME supports 1080i HDTV-out, 18/24-bit dual-channel LVDS
» DDR2 667/533/400 MHz SO-DIMM socket supports up to 2 GB
» Dual Broadcom BCM5787M PCIe GbE chipset
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

Display Display
System CPU
Chipset Intel® 945GME + ICH7M
Memory Max. 1 x 200-pin 400/533/667 MHz
2 GB DDR2 SO-DIMM (system
max. 2GB)
CPU Socket Socket M
I/O Interface Ethernet
Digital I/O 8-bit digital I/O (4-bit input/4-bit output)
Audio AC-KIT-892HD-R10
I/O Interface 3 x RS-232
1 x RS-232/422/485
6 x USB 2.0
1 x LPT
1 x Infrared interface
1 x PS/2 for KB/MS
Power Power consumption
Environment Operating Temperature
Humidity 5% ~ 95% non- condensing
Option iRIS
Storage Storage
Expansion Slots Expansion Slots
Watchdog Timer Watchdog Timer
CPU Cooler CPU Cooler
I/O Interface I/O Interface
1 x LPT
3 x RS-232
1 x RS-422/485

Ordering Information

NANO-9452-R40 EPIC SBC Intel Core Duo FSB667Mhz with CRT/LCD,Dual PCIE-GbE,SATA and Audio,RoHS
