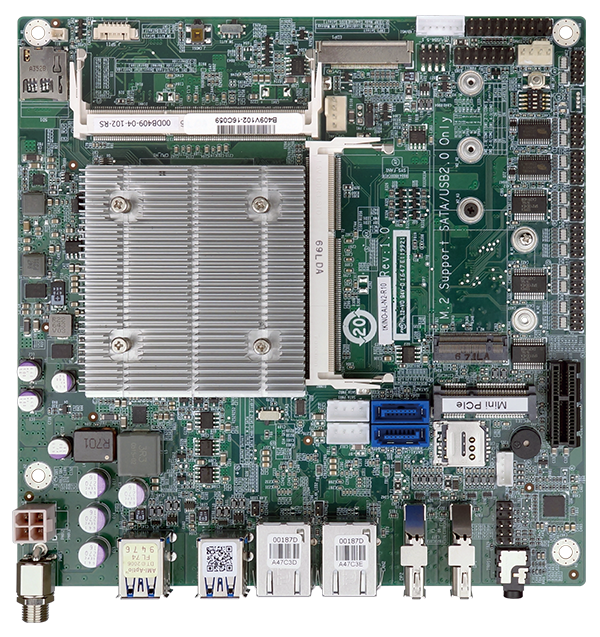

Thin Mini-ITX SBC supports Intel® 14nm Atom™, Pentium® or Celeron® on-board SoC with DP++

  • Overview

    ● Thin Mini-ITX SBC supports Intel® 14nm Atom™, Pentium® or Celeron® on-board SoC supports dual-channel DDR3L SO-DIMMs
    ● Triple independent display support
    ● Full size PCIe Mini slot with SIM sockets for WWAN expansion
    ● COM, USB 3.0, SATA 6Gb/s and audio support
    ● IEI one key recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Dimensions
      Dimensions170mm x 170mm
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature-20°C ~ 60°C
      I/O Interface
      Digital I/O8-bit digital I/O (2x5 pin)
      Ethernet2 x PCIe GbE LAN Realtek RTL8111
      Expansion1 x PCIe x1 slot
      1 x Full/Half-size PCIe Mini card slot (w/ SIM holder)
      I/O Interface
      I/O Interface1 x SMBus((1 x 4pin))
      2 x Internal USB 2.0((2 x 4 pin,p=2.0))
      4 x Internal RS-232((2 x 5 pin,p=2.0))
      2 x Internal RS-232/422/485((2 x 5 pin,p=2.0))
      1 x KB/MS((1 x 6Pin ))
      2 x SATA 6Gb/s
      System
      CPUIntel® Atom™ E3950 on-board SoC (up to 2.0GHz, quad-core, 2M Cache, TDP=12W )
      Intel® Atom™ E3940 on-board SoC (up to 1.8GHz, quad-core, 2M Cache, TDP=9W)
      Intel® Atom™ E3930 on-board SoC (up to 1.8GHz, dual-core, 2M Cache, TDP=6W)
      Intel® Pentium® N4200 on-board SoC (up to 2.5GHz, quad-core, 2M Cache, TDP=6W)
      Intel® Celeron® N3350 on-board SoC (up to 2.4GHz, dual-core, 2M Cache, TDP=6W)
      Memory Max.Two 204-pin 1867/1600MHz Dual-channel DDR3L DIMMs support up to 8GB
      Weight
      Weight1100g / NW: 700g
    • Ordering Info.

      Item No. Description
      tKINO-AL-N1-R10Thin Mini-ITX SBC supports Intel® 14nm dual-core Celeron® N3350 2.4GHz on-board SoC with DP++, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS
      tKINO-AL-N2-R10Thin Mini-ITX SBC supports Intel® 14nm quad-core Pentium® N4200 2.5GHz on-board SoC with DP++, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS
    • Package Contents

      • 1 x tKINO-AL single board computer with heatsink

      • 1 x One key recovery CD

      • 1 x SATA with power cable kit

      • 1 x QIG

      • 1 x I/O Shielding

      • 1 x Utility CD
