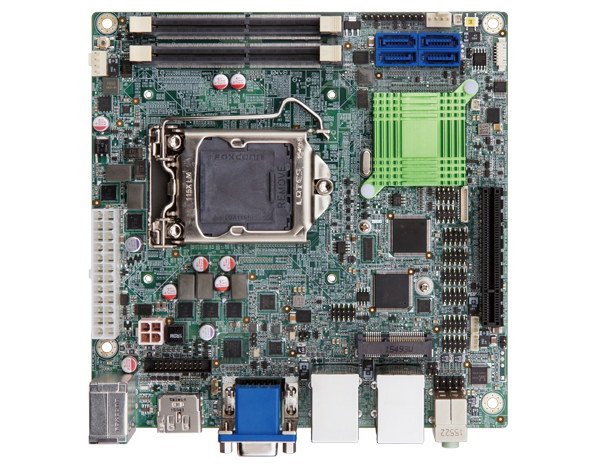

KINO-AQ170

Mini-ITX SBC supports LGA 1151 Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU with Intel® Q170

  • Overview
    ● Mini ITX form factor with LGA 1151 Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor and DDR4 2133MHz memory support
    ● Support HDMI 2.0 (4096x2160@60Hz)
    ● Dual Intel® GbE support Intel® AMT 11.0
    ● Triple display via HDMI 2.0/HDMI/DP 1.2/VGA/iDP
    ● High speed I/O interface for USB 3.0, SATA 6Gb/s and mSATA support
    ● Support IEI jumpless

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Dimensions
      Dimensions170mm x 170 mm
      Display
      Display OutputTriple independent displays
      1 x HDMI 2.0 by MCDP2800-BB DP to HDMI converter (up to 4096x2160@60Hz)
      1 x HDMI/DP (up to 3840x2160@60Hz)
      1 x VGA by CH7517 DP to VGA converter (up to 1920x1200)
      1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature-20°C ~ 60°C
      Expansion Slots
      Expansion Slots1 x Full-size PCIe Mini slot (support mSATA)
      1 x PCIe x8 slot
      I/O Interface
      AudioRealtek ALC662 HD Audio codec
      2 x Audio jacks (line-out, mic-in) on rear IO
      1 x Front audio (2x5-pin)
      Digital I/O1 x 8-bit digital I/O (2x5 pin)
      EthernetLAN1: Intel® I219LM with (Intel® AMT 11.0 support)
      LAN2: Intel® I211 PCIe controller with NCSI support
      I/O Interface
      I/O Interface2 x RS-422/485((1 x 4 pin, P=2.0, colay with COM4))
      1 x I²C((1 x 4 pin))
      4 x Internal RS-232((2 x 5pin,P=2.0))
      4 x Internal USB 2.0((2 x 4pin,P=2.0))
      4 x SATA 6Gb/s((RAID 0/1/5/10 support))
      1 x SMBus((1 x 4 pin))
      SMBus((1 x 4 pin))
      Power
      Power consumption3.3V@1.62A, 5V@3.54A, 12V@8.17A, 5VSB@3.6A
      (Intel® Core™ i7 6700K 4.0GHz CPU with 16 GB (two 8 GB) 2133 MHz DDR4 memory)
      Power SupplyATX/AT Power Supply
      System
      ChipsetIntel® Q170
      CPULGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor
      Memory Max.Two 260-pin 2133 MHz dual-channel DDR4 SDRAM SO-DIMM supported (system max.64 GB)
      Weight
      WeightGW:900g, NW: 450g

    • Ordering Info.

      Item No. Description
      KINO-AQ170-R10Mini-ITX Motherboard supports 14nm LGA1151 Intel® Skylake CPU Intel® Q170,HDMI2.0/DP/VGA, SATA, Dual Intel®GbE, USB3.0,PCIE mini, HD audio and RoHS

    • Package Contents

      • 1 x KINO-AQ170 single board computer

      • 2 x SATA cable

      • 1 x I/O shielding

      • 1 x QIG
