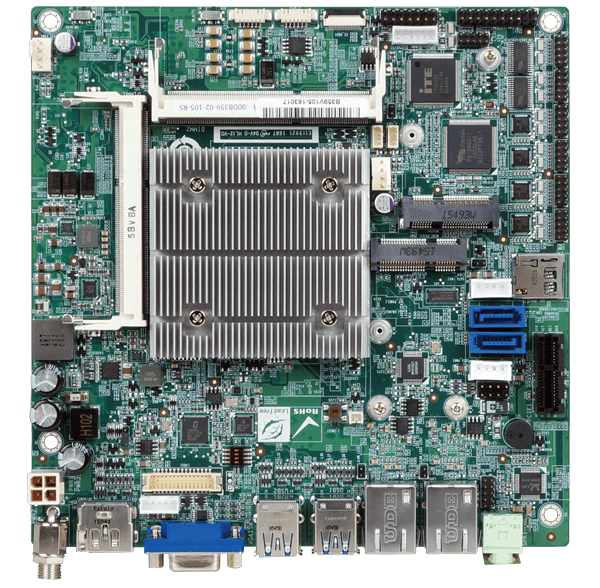

tKINO-BW

Thin Mini-ITX SBC supports 14nm Intel® Pentium®/Celeron® on-board SoC

» Thin Mini-ITX form factor with 14nm Intel® Pentium®/Celeron® on-board SoC processor supports DDR3L memory
» Supports USB 3.0, two SATA 6Gb/s
» Triple independent display, supporting 4K resolution
» Supports IEI jumperless function

Hardware Spec.

System
CPU Intel® Pentium® N3710 on-board SoC (up to 2.56GHz, quad-core, 2MB cache, TDP=6W)
Intel® Celeron® N3160 on-board SoC (up to 2.24GHz, quad-core, 2MB cache, TDP=6W)
Intel® Celeron® N3060 on-board SoC (up to 2.48GHz, dual-core, 2MB cache, TDP=6W)
Intel® Celeron® N3010 on-board SoC (up to 2.24GHz, dual-core, 2MB cache, TDP=4W)
Memory Two 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM
Memory Max. 8GB
Physical Characteristics
Net Weight 400g
Storage
Storage 2 x SATA :6Gb/s with 5V output
1 x mSATA :colay SATA2
1 x SD/MicroSD card
I/O Interface
Display Output 1 x VGA :up to 1920x1200@60Hz
1 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz)
Ethernet 1 x Description: Dual Realtek RTL8111E PCIe GbE controller
Audio Description: Realtek ALC662 HD codec
1 x Line out :on rear IO
1 x Speaker :1x4 pin
1 x Front Audio :2x5 pin
I/O Interface 4 x Internal RS-232 :2x5 pin, P=2.0
2 x Internal RS-232/422/485 :2x5 pin, P=2.0
2 x Internal USB 2.0 :2x4 pin, P=2.54
1 x PS/2 :1x6 pin
1 x DIO :8-bit digital I/O (2x5 pin)
Expansion 1 x PCIe x1
1 x PCIe mini Card Slot
Other Features
TPM 2x10 pin
Power
Power Consumption 12V@1.61A (Intel® Celeron® N3710 CPU with two 4 GB 1600 MHz DDR3L memory)
Power Supply 1 x External DC power jack (ø5.5 mm)
1 x Internal power connector (2x2 pin) Input Voltage Range: 9V ~ 30V
Support AT/ATX mode
Environment
Operating Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

tKINO-BW-N4-R20 Thin Mini-ITX SBC supports Intel® Pentium® quad-core processor N3710 up to 2.56GHz (6W), VGA/LVDS/DP+HDMI™, SATA, dual GbE, USB 3.0, HD Audio and RoHS

Package Contents

Package Content
  • 1 x tKINO-BW single board computer with heatsink

  • 1 x I/O shielding

  • 1 x SATA cable

  • 1 x QIG
