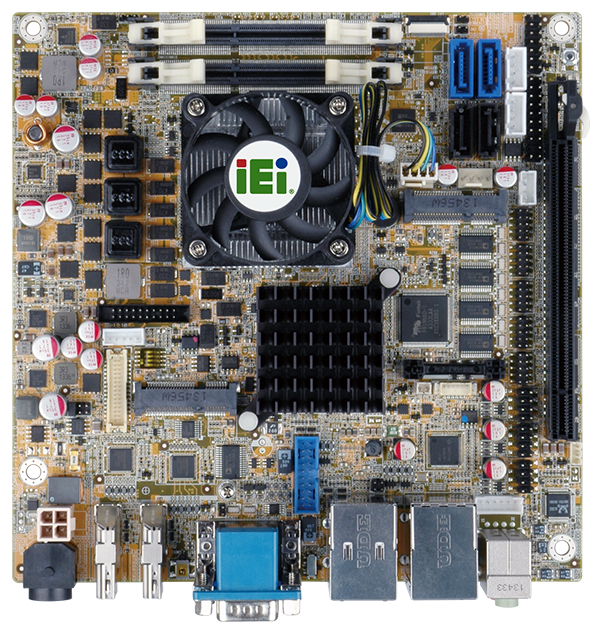

KINO-DQM871

Mini-ITX SBC supports 4th generation 22nm Intel® mobile processors,

End of Life

End of Life Notice

* Effective Date: 2021/09/06

» 4th generation Intel® mobile Core i7/i5/i3 or Celeron® on-board processor
» DDR3 1066/1333/1600 MHz dual-channel SDRAM
» HDMI™ 1.4a compliant, triple independent display supported
» 3D micro-architecture enhancement supports DX11.1, OCL 1.2 and OGL3.2
» Rich media acceleration for hardware decode and encode acceleration
» Intel® GbE LAN with Intel® AMT 9.0 support
» High speed I/O interface for PCIe Gen 3.0 add-on card, USB 3.0 and SATA 6Gb/s supported
» Supports dual PCIe Mini expansion for PCIe Mini device and mSATA
» IEI jumper-less function
» Support IPMI 2.0 with iRIS-1010 module

Hardware Spec.

System
CPU Intel® mobile Core™ i7-4700EQ on-board
processor with Intel® AMT 9.0 support (2.4GHz, quad-core, 6MB cache, TDP=47W)
Intel® mobile Core™ i5-4402E on-board
processor with Intel® AMT 9.0 support (1.6GHz, dual-core, 3MB cache, TDP=25W)
Intel® mobile Core™ i5-4400E on-board
processor with Intel® AMT 9.0 support (2.7GHz, dual-core, 3MB cache, TDP=37W) (by request)
Chipset Intel® QM87
Memory Two 204-pin 1600/1333 MHz dualchannel DDR3 SDRAM unbuffered DIMMs
Memory Max. 16GB
Physical Characteristics
Dimensions (LxWxH) (mm) 170 X 170
Net Weight 450g
Storage
Storage 4 x SATA :2 X 3Gb/s, 2 X 6Gb/s(RAID 0/1/5/10 supported)
I/O Interface
Display Output 1 x VGA :up to 1920x1200@60Hz
2 x HDMI™ :up to 2500x1600@60Hz
1 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz)
1 x iDP :interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
Ethernet 2 x LAN :LAN1: Intel® I217LM with Intel® AMT 9.0 support
LAN2: Intel® I210-AT PCIe controller
Audio Description: Realtek ALC662 HD codec supports 5.1-channel
1 x Line out :on rear IO
Mic :on rear IO
I/O Interface 1 x External RS-232
4 x Internal RS-232 :2x5 pin, P=2.0
1 x Internal RS-422/485 :1x4 pin, p=2.0
2 x External USB 2.0
1 x External USB 3.2 Gen1x1
6 x Internal USB 2.0 :2x4 pin, P=2.54
2 x Internal USB 3.2 Gen1x1 :2x10 pin, p=2.0
1 x PS/2 :1x6 pin
Expansion 1 x PCIe x16
1 x PCIe mini Card Slot :Full-size slot(support mSATA)
Other Features
TPM 2x10 pin
Power
Power Consumption 12V@6.03A (Intel® Core™
i7-4770EQ, 2.4GHz CPU with 8 GB (two 4 GB)
1333 MHz DDR3 memory)
Power Supply 12V DC input
1 x Internal power connector (2x2 pin)
1 x External DC jack (4-pin DIN)
Support AT/ATX mode
Environment
Operating Temperature -20°C ~ 60°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

KINO-DQM871-i1-i7-R10 Mini-ITX SBC supports Intel® 22nm 4th Generation Mobile Core™ i7-4700EQ processor (47W), HDMI™ / VGA / LVDS / iDP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, Audio, iRIS-1010 and RoHS
KINO-DQM871-i1-i5E-R10 Mini-ITX SBC supports Intel® 22nm 4th Generation Mobile Core™ i5-4402E processor(25W), HDMI™ / VGA / LVDS / iDP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, Audio, iRIS-1010 and RoHS

Package Contents

Package Content
  • 1 x KINO-DQM871-i1 motherboard

  • 2 x SATA with power output cable

  • 1 x CPU cooler

  • 1 x Mini jumper pack

  • 1 x I/O shielding

  • 1 x QIG


Download Specs.
