IMBA-Q170

ATX motherboard supports 14nm LGA1151 Intel® CPU Intel® Q170,

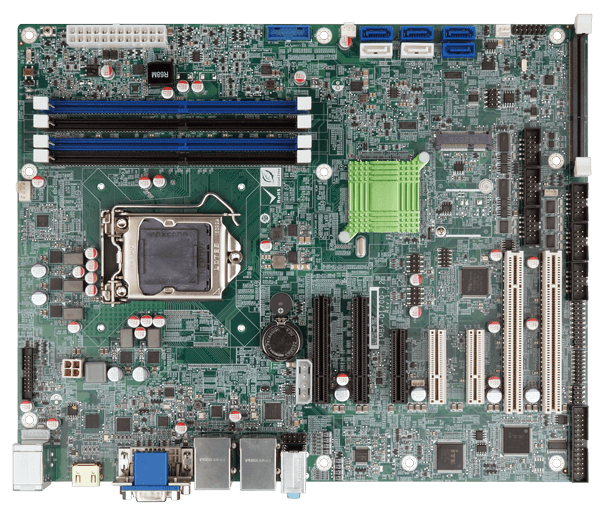

IMBA-Q170 ATX Industrial Motherboard
IMBA-Q170 ATX Industrial Motherboard IO
  • IMBA-Q170 ATX Industrial Motherboard
  • IMBA-Q170 ATX Industrial Motherboard IO
» LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported
» Dual-channel DDR4 2133 MHz
» Support triple display with HDMI™, DVI and VGA
» Support USB 3.0, SATA 6Gb/s and PCI Express Gen3
» Support IPMI 2.0 via iRIS-2400 module
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

6th Generation Intel® Platform Overview

  • Totally new 14nm processor using 2nd generation 3-D tri-gate transistors
  • Support dual-channel DDR4 & DDR3L memory (ECC optional)
  • Gen 9 graphics engine
    » 3 independent displays with audio
    » Display resolutions supporting up to 4K@60Hz
  • High speed I/O flexibility
  • Security
    » HW Based Security features with Intel® PTT, Boot Guard, Intel® MPX
    » SW Based Security: Intel® SGX
  • Skylake 2-chip & single package solution
    » Desktop & Workstation 2-chip platforms: socket type LGA1151
    » Mobile 2-chip platforms: BGA 1140
    » Low power ULT single package platform: BGA 1356

Flexible I/O and PCIe Configuration

Also, Skylake high-end CPU has three controllers that can separate PCIe x16 into different sets.

Flexible I/O and PCIe Configuration

Dual BIOS
(for skylake flexible I/O only)

Easy for customer to switch to different ME firmware to achieve I/O flexibility

Dual BIOS(for skylake flexible I/O only)

HDMI™ 2.0 & DP 1.2

HDMI™ 2.0 & DP 1.2 can support Ultra HD 4K resolution (4096x2304@60Hz).

HDMI™ 2.0 & DP 1.2

Product Overview

Product Overview
Product Overview

Powerful Security Function
- IEI TPM Expansion -

Hardware-based security solution for data protection and reliable authentication via TPM that stores key, passwords and digital certificates.

IEI TPM-IN02
IEI TPM-IN02
  • File & Folder En/De-cryption
  • Personal secure drive
  • Secure email
  • Key transferring
  • Security policy configuration
  • LPC interface

Application Field

4D cinema control system needs to connect for multiple sensors,provide basic processing power, have integrated graphics Even though technology may push on as computer hardware gets faster, the IMBA-Q170-i2 is good-to-go even beyond the next decade. With multiple and flexible I/O, allows range of expansion card to be easily added.


Hardware Spec.

System
CPU LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor
Chipset Intel® Q170
Memory Four 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs
Memory Max. 64GB
Physical Characteristics
Dimensions (LxWxH) (mm) 244 X 305
Net Weight 700g
Storage
Storage 6 x SATA :6Gb/s (RAID 0/1/5/10 supported)
I/O Interface
Display Output 1 x VGA :up to 1920x1200@60Hz
1 x DVI-D :up to 1920x1200@60Hz
1 x HDMI™ :2.0 (up to 4096x2160@60Hz)
1 x iDP :interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
Ethernet 2 x LAN :LAN1: Intel® I219LM with Intel® AMT 11.0 support
LAN2: Intel® I210AT PCIe controller with NCSI support
Audio Description: Realtek ALC662 HD codec supports 5.1-channel
1 x Line in :on rear IO
1 x Line out :on rear IO
1 x Mic :on rear IO
1 x Front Audio :2x5 pin
I/O Interface 4 x Internal RS-232 :2x5 pin, P=2.54
2 x Internal RS-232/422/485 :2x5 pin, p=2.54
2 x External USB 2.0
4 x External USB 3.2 Gen1x1
4 x Internal USB 2.0 :2x4 pin, P=2.0
2 x Internal USB 3.2 Gen1x1 :2x10 pin, p=2.0
1 x PS/2 :1x6 pin
1 x DIO :8-bit digital I/O (2x5 pin)
1 x LPT :2x13 pin, p=2.54
Expansion 2 x PCIe x8
3 x PCIe x4
2 x PCI Slot
1 x PCIe mini Card Slot :Full-size slot (support mSATA)
Other Features
iRIS 1 X iRIS-2400 slot
TPM 2x10 pin
Power
Power Consumption 3.3V@1.65A, 5V@3.4A, 12V@8.58A, 5VSB@3.4A (Intel® Core™ i7 6700K 4.0GHz CPU with 32 GB (four 4 GB) 2133 MHz DDR4 memory)
Power Supply support AT/ATX mode
Environment
Operating Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Humidity 5% ~ 95%, non-condensing

Ordering Information

IMBA-Q170-i2-R10 ATX Motherboard supports 14nm LGA1151 Intel® Core™ Intel® Q170, DDR4, Three Independent Displays VGA/ DVI-D / HDMI™ 2.0/ Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio, IPMI2.0 and RoHS

Package Contents

Package Content
  • 1 x IMBA-Q170-i2 single board computer

  • 2 x SATA cable

  • 1 x I/O shielding

  • 1 x QIG
