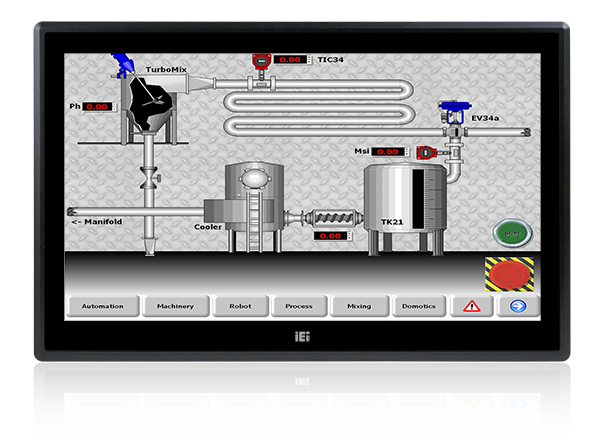

DM-F24A

17”~24” DM-F IP65 Industrial Monitor

» Robust IP65 aluminum front bezel
» Aesthetic ultra-thin bezel for seamless panel mount installation
» Wide range 9V~36V DC input
» HDMI / DisplayPort / VGA flexible video input solution
» Projected capacitive multi-touch and resistive single touch options
» Wide temperature support

Hardware Spec.

Display
Backlight MTBF(hrs) 30000
Brightness(cd/m2) 250
Contrast Ratio 3000:1
LCD Size 24”(16:9)
Max Resolution 1920 (W) x 1080 (H)
Environment
Humidity 10% to 95% (non-condensing)
IP Level IP 65 compliant front panel
Operating Temperature -20°C ~ 60°C
Storage Temperature -20°C ~ 70°C
I/O Interface
I/O Ports and Switches 1 x VGA (DB-15)
1 x HDMI(F17A only)
1 x DisplayPort1.1
1 x USB 2.0 (touch)
1 x RS-232 (reserved for resistive touch ATO)
1 x Lockable 12V DC jack
1 x 9V-36V terminal block
LCD
LCD Color 16.7M
Pixel Pitch (mm) 0.28 x 0.28
Viewing Angle (H-V) 178° / 178°
Physical Characteristics
Cutout Dimensions 358.6 x 576.6
Dimensions (LxWxH) (mm) 382 x 600 x 49.4
Power
Power adapter 9V~36V DC
Touch
Touch Screen 2-point projected capacitive 2-point touch window/ EETI EXC7200
Weight
Weight 7.6 / 10.9

Ordering Information

DM-F24A/PC-R30 24" 250 cd/m² FHD LCD monitor, Aluminum front panel, Black color, W/ USB projected capacitive touch screen, 9 ~36V DC input, R30

Package Contents

Package Content
  • 1 x Touch Pen

  • 1 x USB Cable

  • 1 x VGA Cable
