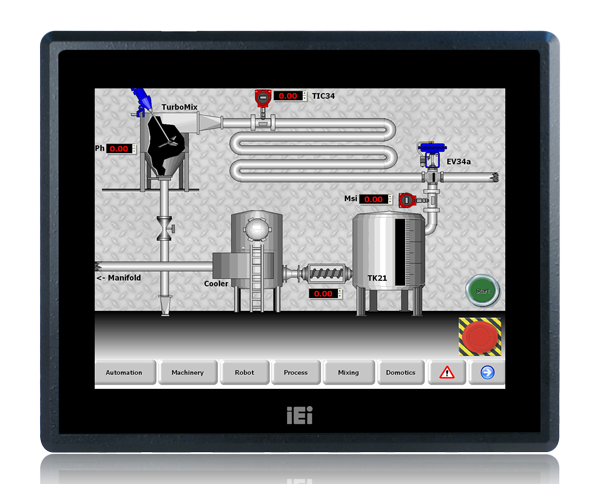

  • Overview

    ● Robust IP65 aluminum front bezel
    ● Aesthetic ultra-thin bezel for seamless panel mount installation
    ● DC input
    ● DVI / VGA flexible video input solution
    ● Resistive single touch
    ● Wide temperature support
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Display
      Backlight MTBF(hrs)50000
      Brightness(cd/m2)600
      Contrast Ratio700:1
      LCD Size12”(4:3)
      Max Resolution1024 (W) x 768 (H)
      Environment
      Humidity10% to 95% (non-condensing)
      IP LevelIP 65 compliant front panel
      Operating Temperature-20°C ~ 60°C
      Storage Temperature-20°C ~ 70°C
      I/O Interface
      I/O Ports and Switches1 x VGA (DB-15)
      1 x HDMI
      1 x DisplayPort1.1
      1 x USB 2.0 (touch)
      1 x RS-232 (reserved for resistive touch ATO)
      1 x Lockable 9V-36V DC jack
      1 x 9V-36V terminal block
      LCD
      LCD Color16.2M
      Pixel Pitch (mm)0.24 x 0.24
      Viewing Angle (H-V)160° /140°
      Physical Characteristics
      Cutout Dimensions244.8 x 304.8
      Dimensions (LxWxH) (mm)262.2 x 322.2 x 40.5
      Power
      Power adapter9V~36V DC
      Touch
      Touch Controller5-wire resistive single touch window/ Penmount 6000
      Touch Screen2-point projected capacitive touch window/ EETI EXC7200
      Weight
      Weight2.7 / 4.9
    • Ordering Info.

      Item No. Description
      DM-F12A/PC-R2012" 600 cd/m² XGA LCD monitor, Aluminum die casting front panel, Black color, W/ USB projected capacitive touch screen, 9 ~36V DC input, R20
      DM-F12A/R-R2012" 600 cd/m² XGA LCD monitor, Aluminum die casting front panel, Black color, W/ USB resistive touch screen, 9 ~36V DC input, R20
    • Package Contents

      • 1 x Touch Pen

      • 1 x USB Cable

      • 1 x VGA Cable
