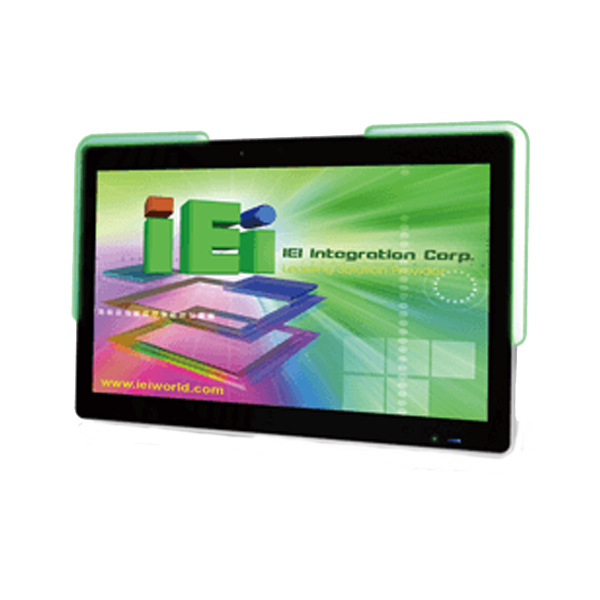

AFL2-W21A-H61

Intel® Core™ i7/i5/i3 and Pentium® Processor

  • Overview

    ● Two 204-pin DDR3 SO-DIMM slot (system max. 16GB) pre-installed with 4GB (2GB x 2)
    ● Projected capacitive touchscreen supported
    ● Wi-Fi 802.11b/g/n high speed wireless
    ● EM or Mifare RFID reader
    ● Programmable colorful LED light bar
    ● Built-in two 3W speakers and microphone
    ● Auto dimming control
    ● Light fanless design
    ● Wide range 9~36 VDC input
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Communication
      Wi-FiIEEE 802.11b/g/n
      Dimensions
      Dimensions546.85 x 345.82 x 70.35
      Environment
      Operating Temperature-10°C~50°C
      Storage Temperature-20°C~60°C
      I/O Interface
      I/O Ports and Switches2 x RS232 (DB9 Connector)
      1 x RS422/485 COM Port (DB9 connector)
      2 x GbE LAN (RJ-45 connector)
      3 x USB 2.0
      2 x USB 3.0
      1 x HDMI
      RAMSupport two 204-pin DDR3 SO-DIMM slot (max.
      16GB) preinstalled with 4GB (2GB x 2)
      LCD
      Backlight MTBF30000 (LED backlight panel)
      Brightness (cd/m2)250
      Contrast Ratio1000:1
      LCD Color16.7M
      Pixel Pitch (mm)0.248 (H) x 0.248 (V)
      Resolution1920 x 1080
      SizeW21.5"(16:9)
      Viewing Angle (H-V)170º/160º
      Other Features
      Camera2-megapixel camera with low light function
      MicrophoneDigital Microphone
      System CoolingFanless
      Power
      Power Requirement9~36 VDC
      Storage
      Storage1 x 2.5″ SATA 3Gb/s HDD Bay
      System
      ChipsetIntel® ICH61
      CPUIntel® Core™ i7/i5/i3 and Pentium® processors
      Touch
      Touch ControllerEETI EXC7200 & EXC5404
      Touch Screenprojected capacitive type with USB interface
      Weight
      Weight8.27Kg
      I/O Interface
      I/O Interface1 x Type K connector
      3 x USB 2.0
      2 x USB 3.0
      1 x Reset Button
      1 x RS-422/485((DB-9))
      2 x RS-232((DB-9))
      1 x Power Switch
      1 x Mic
      1 x Line out
      2 x LAN(GbE LAN (RJ-45 connector))
      1 x HDMI
      1 x DC Input Jack(9-36V DC jack)
      1 x AT/ATX switch
      1 x VGA((DB-15))
      1 x Clear CMOS Button
    • Ordering Info.

      Item No. Description
      AFL2-W21A-H61-P/PC-R1121.5" 250cd/m² FHD panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11b/g/n wireless module, projected capacitive touchscreen, 2M camera, microphone,R11
      AFL2-W21AB-H61-i5/PC-R1121.5" 250cd/m2 FHD panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11b/g/n wireless module, projected capacitive touchscreen, 2M camera, microphone, without LED bar, R11
      AFL2-W21A-H61-i3/PC-R1121.5" 250cd/m² FHD panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11b/g/n wireless module, projected capacitive touchscreen, 2M camera, microphone,R11
      AFL2-W21AB-H61-P/PC-R1121.5" 250cd/m2 FHD panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11b/g/n wireless module, projected capacitive touchscreen, 2M camera, microphone, without LED bar, R11
      AFL2-W21A-H61-i5/PC-R1121.5" 250cd/m² FHD panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11b/g/n wireless module, projected capacitive touchscreen, 2M camera, microphone,R11
      AFL2-W21AB-H61-i3/PC-R1121.5" 250ccd/m2 FHD panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 2GB DDR3 RAM*2, 802.11b/g/n wireless module, projected capacitive touchscreen, 2M camera, microphone, without LED bar, R11
    • Package Contents

      • 1 x Power Adpater

      • 4 x Screw Pack M3

      • 4 x Screw Pack M4
