  • Overview

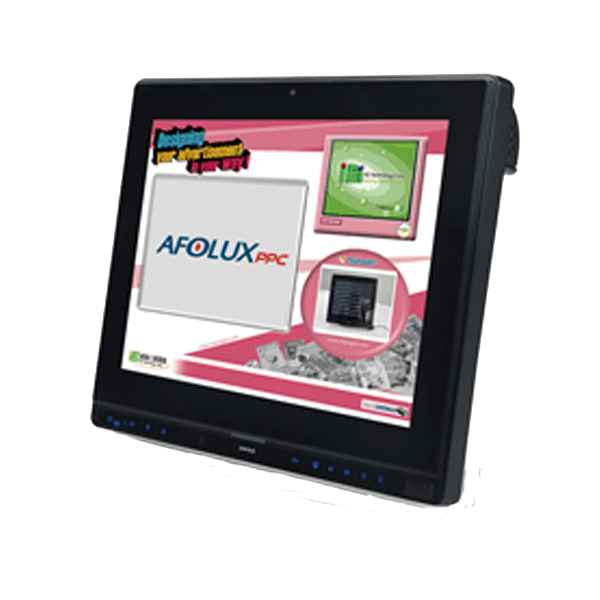

    ● 12.1” 600nits 1024 x 768 flat-bezel LCD with LED backlight
    ● Supports projected capacitive touchscreen or 5-wire resistive type touchscreen
    ● Built-in two 3W speakers and microphone
    ● GbE LAN for high speed network applications
    ● One 204-pin DDR3 SO-DIMM slot (system max. 4GB)
    ● Wi-Fi 802.11b/g/n high speed wireless
    ● EM or Mifare RFID reader
    ● IP 64 compliant front panel
    ● Auto-dimming control
    ● Built-in 2 megapixels webcam with AF AE and AWB capabilities
    ● Wide range 9~36 VDC input
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Communication
      Wi-FiIEEE 802.11b/g/n
      Dimensions
      Dimensions310 x 265 x 52.6
      Environment
      Operating Temperature-20°C~50°C with SSD
      Storage Temperature-20°C~60°C
      I/O Interface
      RAMSupport one 204-pin DDR3 SO-DIMM slot (Max. 4GB)
      I/O Ports and Switches1 x RS-232 (DB-9)
      1 x RS-232 (RJ-45)
      1 x RS-422/485 (4-pin box header)
      2 x GbE LAN (RJ-45)
      2 x USB 2.0
      2 x USB 3.0
      1 x Mini USB 2.0 port on front panel
      1 x Audio jack (line-out)
      LCD
      Size12.1"
      Resolution1024 x 768
      Brightness (cd/m2)600
      Contrast Ratio700:1
      LCD Color16.2M
      Pixel Pitch (mm)0.240 (H) x 0.240 (V)
      Viewing Angle (H-V)160º/140º
      Backlight MTBF50000 (LED backlight panel)
      Other Features
      Camera2 M pixels with low light function
      System CoolingFanless
      Power
      Power Requirement9~36 VDC
      Storage
      Storage2.5" SATA 6Gb/s SSD bay
      System
      CPU2nd Generation Intel® Core™ i7/ i5/ i3 and Celeron® processor
      ChipsetIntel® HM65
      Touch
      Touch Screen5-wire rsistive type with RS-232 interface
      Touch ControllerPenMount DMC9000 / EETI EXC7200 & EXC5400
      Weight
      Weight3.8Kg
      I/O Interface
      I/O Interface1 x AT/ATX switch
      1 x Audio((line-out))
      1 x Clear CMOS Button
      1 x DC Input Jack
      1 x HDMI
      2 x LAN(GbE LAN (RJ-45))
      2 x USB 3.0
      1 x Mini USB 2.0(on front panel)
      1 x Power Switch
      2 x RS-232((DB-9)/(RJ-45))
      1 x RS-422/485((4-pin box header))
      1 x Reset Button
      2 x USB 2.0
      1 x MicroSD card slot(on front panel)
    • Ordering Info.

      Item No. Description
      AFL2-12A-HM65/R-R1412.1" 600cd/m² XGA panel PC,802.11b/g/n,resistive touch screen,2M camera, microphone,Dual GbE LAN, R14
      AFL2-12A-HM65/PC-R1412.1" 600cd/m² XGA panel PC, 802.11b/g/n wireless module, projective capacitive touchscreen,2M camera, microphone,Dual GbE LAN, R14
    • Package Contents

      • 1 x Power Adpater
