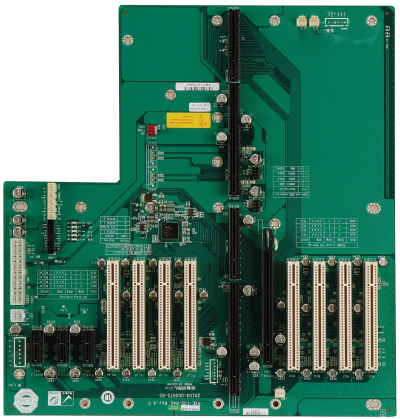

PXE-13S

13-slot backplane with one PCIe x16 slot, three PCIe x1 slots and eight PCI slots

• 4 x Internal USB 2.0 :by Pin Header
• 1 x PCIe x16
• 3 x PCIe x4
• 8 x PCI Slot

Hardware Spec.

Physical Characteristics
Mounting RACK-3000G
RACK-305G
RACK-360G
I/O Interface
I/O Interface 4 x Internal USB 2.0 :by Pin Header
Expansion 1 x PCIe x16
3 x PCIe x4
8 x PCI Slot
Power
Power Supply 24+4-pin ATX

Ordering Information

RACK-360GW-R22 4U 14-Slot Rackmount Chassis,FP With USB,White,AT Power Switch,W/O PSU,RoHS
RACK-360GB-R22 4U 14-Slot Rackmount Chassis,FP With USB,Black,AT Power Switch,W/O PSU,RoHS
RACK-305GW-R22 4U 14-Slot Rackmount Chassis,White,AT Power Switch,W/O PSU,RoHS
RACK-305GB-R22 4U 14-Slot Rackmount Chassis,Black,AT Power Switch,W/O PSU,RoHS
RACK-3000GW-R21 4U 14-Slot Rackmount Chassis,White,ATX Power Switch,W/O PSU,RoHS
RACK-3000GB-R21 4U 14-Slot Rackmount Chassis,Black,ATX Power Switch,W/O PSU,RoHS
PXE-13S-R51 13-Slot PICMG 1.3 PCIe to PCI Bridge Backplane via ITE IT8892E, one PCIe x16, three PCIe x1, eight PCI, RoHS
