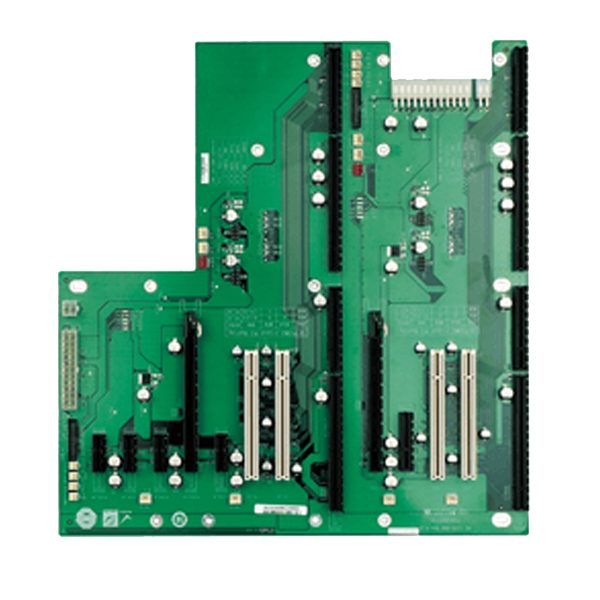

PE-13SD

13-slot backplane with two PCIe x16 slots, one PCIe x4 slot, four PCIe x1 slot and four PCI slots

End of Life

End of Life Notice

* Effective Date: 2020/12/31


Hardware Spec.

I/O Interface
I/O Interface 8 x Internal USB 2.0
Expansion 2 x PCIe x16 :1/1
1 x PCIe x4 :1/0
4 x PCIe x1 :0/4
2 x PCI Slot :2/2
Power
Power Supply Dual 24+4 pin TX

Ordering Information

RACK-360GW-R22 4U 14-Slot Rackmount Chassis,FP With USB,White,AT Power Switch,W/O PSU,RoHS
RACK-360GB-R22 4U 14-Slot Rackmount Chassis,FP With USB,Black,AT Power Switch,W/O PSU,RoHS
RACK-305GW-R22 4U 14-Slot Rackmount Chassis,White,AT Power Switch,W/O PSU,RoHS
RACK-305GB-R22 4U 14-Slot Rackmount Chassis,Black,AT Power Switch,W/O PSU,RoHS
RACK-3000GW-R21 4U 14-Slot Rackmount Chassis,White,ATX Power Switch,W/O PSU,RoHS
RACK-3000GB-R21 4U 14-Slot Rackmount Chassis,Black,ATX Power Switch,W/O PSU,RoHS
PE-13SD-R40 PICMG 1.3 ,13 Slots Daul System Backplane with 2PCIe x16 and 1PCIe x4 and 4PCIe x1 and 4PCI Slots,RoHS

Download Specs.
