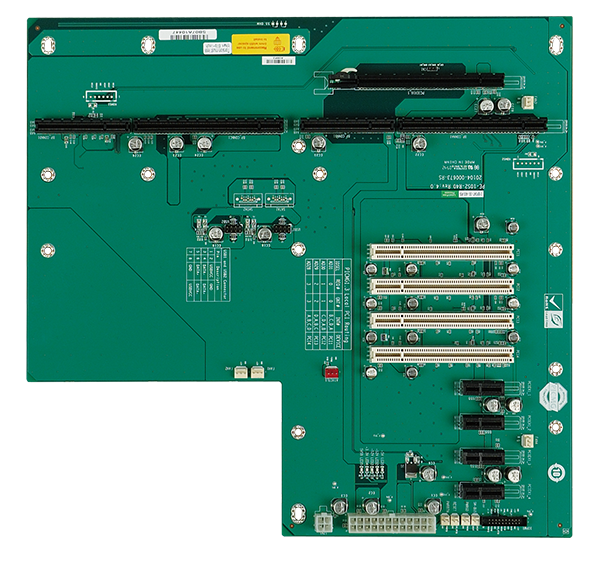

PE-10S2

10-slot backplane with one PCIe x16 slot, four PCIe x1 slots and four PCI slots

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Chassis
      ChassisRACK-305G
      RACK-360G
      RACK-3000G
      Expansion Slots
      PCI Slot4
      PCIe x 14
      PCIe x 161
      PSU Type
      PSU Type24+4pin ATX
      Total Slot
      Total Slot10
      USB Connectors by Pin
      USB Connectors by Pin4
    • Ordering Info.

      Item No. Description
      PE-10S2-R40PICMG 1.3 ,10 Slots Backplane with 1PCIe x16 and 4PCIe x1 and 4PCI Slots,RoHS
      RACK-360GB-R224U 14-Slot Rackmount Chassis,FP With USB,Black,AT Power Switch,W/O PSU,RoHS
      RACK-3000GB-R214U 14-Slot Rackmount Chassis,Black,ATX Power Switch,W/O PSU,RoHS
      RACK-305GB-R224U 14-Slot Rackmount Chassis,Black,AT Power Switch,W/O PSU,RoHS
      RACK-305GW-R224U 14-Slot Rackmount Chassis,White,AT Power Switch,W/O PSU,RoHS
      RACK-360GW-R224U 14-Slot Rackmount Chassis,FP With USB,White,AT Power Switch,W/O PSU,RoHS
      RACK-3000GW-R214U 14-Slot Rackmount Chassis,White,ATX Power Switch,W/O PSU,RoHS
