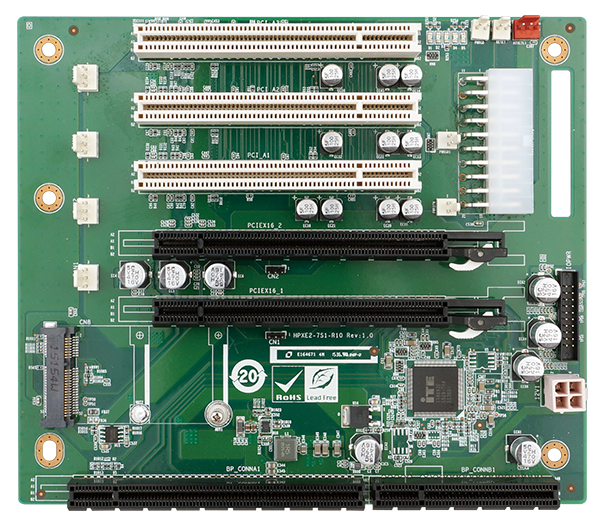

HPXE2-7S1

7-slot PICMG 1.3 backplane for half-size SBC, with three PCI slots and two PCIe x16 slots (x8 signal)

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Chassis
      ChassisPAC-700G
      PAC-1700G
      Expansion Slots
      PCI Slot3
      PCIe x 85
      PSU Type
      PSU Type24+4pin ATX
      Total Slot
      Total Slot7
    • Ordering Info.

      Item No. Description
      PAC-700GB-R117-Slot Half size chassis,Black,W/O PSU,RoHS
      HPXE2-7S1-R107-slot PICMG 1.3 backplane for half-size SBC, with three PCI slots and two PCIe x16 slots (x8 signal)
      PAC-1700GB-R207-Slot Full size Chassis,Black,W/O PSU,RoHS
