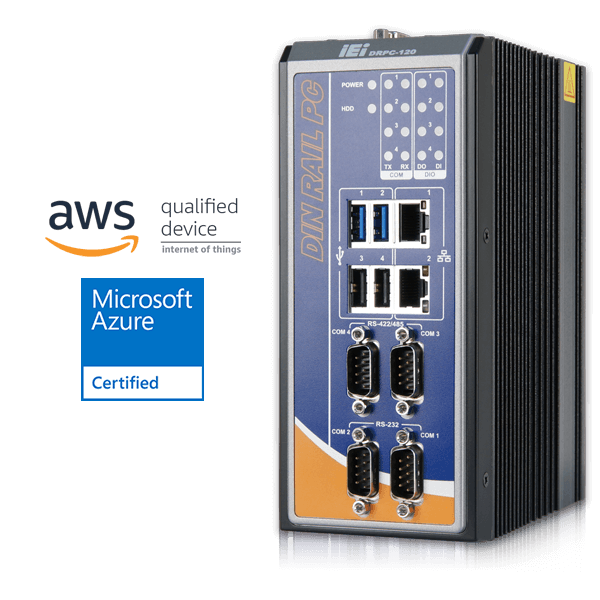

DRPC-120-BT

Fanless DIN-Rail Embedded System,Intel® E3845 1.91GHz Solution

  • Overview

    ● Intel® Atom™ E3845 1.91GHz
    ● 1 x 2.5' SATA HDD/SSD drive bay
    ● DDR3L 1.35V SO-DIMM support
    ● Programmable OLED display
    ● 8-bit digital I/O (4-bit inputs/outputs)
    ● IEI iRIS-2400 solution
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      SBC Form Factor CPU:
      Intel® Atom™ E3845 1.91 GHz
      Chipset:SoC
      System Memory:
      One 2 GB 204-pin DDR3L SO-DIMM pre-installed
      (system max: 8 GB)
      I/O Interface
      I/O Ports 2 x USB 3.0
      2 x USB 2.0
      Ethernet:
      2 x RJ-45
      1 x PCIe GbE by Intel® I210 controller
      1 x PCIe GbE by Intel® I211 controller
      COM Port:
      2 x DB-9 w/3KV isolation protection
      2 x DB-9 w/3KV isolation protection
      8-bit digital I/O, 4-bit input/4-bit output
      1 x VGA, 1 x HDMI
      802.1 b/g/n 2T2R (optional)
      Expansion Slots
      Expansion Slots 1 x Half-size PCIe Mini slot (w/o USB signal)
      1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)
      System
      Cooling method / System Fan Fanless
      Drive Bays 1 x 2.5〞 SATA 6Gb/s HDD/SSD Bay
      Indicator&Buttons
      Indicators Power/HDD/Com port/DIO
      Color
      Color Black
      Dimensions
      Dimensions 74.08 x 140 x 171.5
      Weight
      Weight 1.4 kg/2.5 kg
      Environment
      Operating Temperature -20°C ~ 60°C with air flow (SSD)
      Humidity 5% ~ 95%, non-condensing
    • Ordering Info.

      Item No. Description
      DRPC-120-BTi-E5-LED/2G-R10Fanless embedded system, Intel® Bay-Trail E3845 1.91 GHz, TDP 10W, 2GB DDR3L pre-installed memory, 1 x VGA, 1 x HDMI, 8 CH DIO, iRIS-2400 optional,9 V~30 V DC, LED indicators, RoHs
      DRPC-120-BTi-E5-OLED/2G-R10Fanless embedded system, Intel® Bay-Trail E3845 1.91 GHz, TDP 10W, 2GB DDR3L pre-installed memory, 1 x VGA, 1 x HDMI, 8 CH DIO, iRIS-2400 optional,9 V~30 V DC, OLED indicators, RoHs
    • Package Contents

      • 1 x Screw kit

      • 1 x Mounting bracket

      • 1 x SATA cable & SATA power cable
