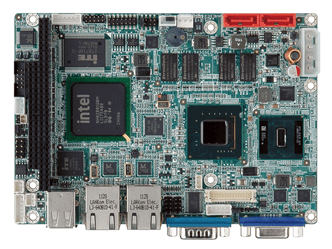

WAFER-945GSE2

3.5” SBC with Intel® Atom™ N270 1.6G

End of Life

End of Life Notice

* Effective Date: 2017/09/04

» Intel® Atom™ N270 1.6GHz processor for ultra low voltage fanless support
» Support VGA and LVDS for dual display
» On-board 1 GB DDR2 memory
» Support two COM, six USB 2.0, two SATA and one CF Type II socket
» Support PC/104 ISA expansion slot
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

Form factor Form factor
Display Display
System CPU
Chipset Intel® 945GSE
Intel® 82801 GBM/ICH7M
Memory Max. 1 GB soldered-down 400 MHz DDR2 memory
I/O Interface Ethernet
Audio Realtek ALC662 HD codec
Power Power consumption
Environment Operating Temperature
Humidity 5% ~ 95%, non-condensing
Storage Storage
Expansion Slots Expansion Slots
I/O Interface I/O Interface
6 x USB 2.0
1 x Internal RS-422/485
1 x KB/MS

Ordering Information

WAFER-945GSE2-N270-R20 3.5" SBC with Intel Atom N270 1.6G,VGA/LVDS,Dual GbE,CFII,USB,SATA,on board 1GB Memory and PC/104
WAFER-945GSE2-N270W-R20 3.5" SBC with Intel Atom N270 1.6G,VGA/LVDS,Dual GbE,CFII,USB,SATA,on board 1GB Memory and PC/104 ,-20~70℃,RoHS
