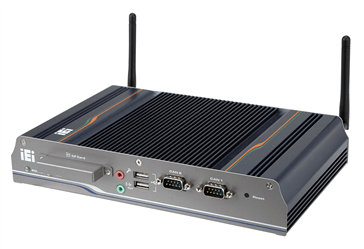

TANK-101B

Fanless Embedded Controller with Dual-
Core Intel® Atom™ D525 Processor

End of Life

End of Life Notice

* Effective Date: 2017/12/29

» Dual-core Intel® Atom™ D525 processor inside
» Wide range 9 V~36 V DC power input
» Isolation protected COM and CAN communication
» Extended temperature fanless design supports -20°C ~ 70°C (N455)

Hardware Spec.

Color
Color Cool Gray+Blue
Dimensions
Dimensions 248 x 138 x 44
Environment
Humidity 5% ~ 95%, non-condensing
Operating Temperature -20°C~60°C (D525 with air flow CF/SSD),
-20°C~70°C (N455 with air flow CF/SSD),
Expansion Slots
Expansion Slots PCIe Mini:1 x Full size
Form factor
SBC Form Factor CPU:
Intel® Atom™ D525 1.8 GHz
Intel® Atom™ N455 1.66 GHz
Chipset:Intel® ICH8M
System Memory
On-board DDR3 1 GB memory
1 x 204-pin DDR3 SDRAM SO-DIMM(system max: 3 GB)
I/O Interface
I/O Ports 4 x USB 2.0
Ethernet:
2 x RJ-45
PCIe GbE by Realtek 8111E
COM Port
3 x RS-232 (DB-9)
1 x RS-422/485(DB-9, Default RS-422 with isolation)
CAN Bus:2 x DB-9 CAN with isolation
Display:1 x VGA
Resolution:VGA: Up to 2048 x 1536@60Hz
Audio:1 x Line-out, 1 x Mic-in
Wireless:1 x 802.11b/g/n (optional)
System
Cooling method / System Fan Fanless
Drive Bays 1 x 2.5' SATA 3Gb/s HDD/SSD bay
Weight
Weight 2.1 kg/3.9 kg

Ordering Information

TANK-101B-R11/N455/1GB Extend tempeture Fanless embedded system with Intel? ATOM? Processor N455 1.66GHz CPU with two isolated CAN, One isolated Serial Port, 1GB DDR3 memory onboard, 9~36V DC in, Pantone 287C + Cool Gray 2C, -20°C ~ 70° C, RoHS
TANK-101B-R11/D525/1GB Extend tempeture Fanless embedded system with dual core Intel ATOM Processor D525 1.8G CPU with two isolated CAN, One isolated Serial Port, 1GB DDR3 memory onboard, 9~36V DC in, Pantone 287C + Cool Gray 2C ,-20°C ~ 60°C, RoHS

Package Contents

Package Content
  • 1 x Power cord

  • 1 x 60W 12 V power adapter (Meet PSE & ErP)

  • 2 x Wall mount brackets

  • 1 x Screw set

  • 1 x SATA HDD drive cable

  • 1 x QIG
