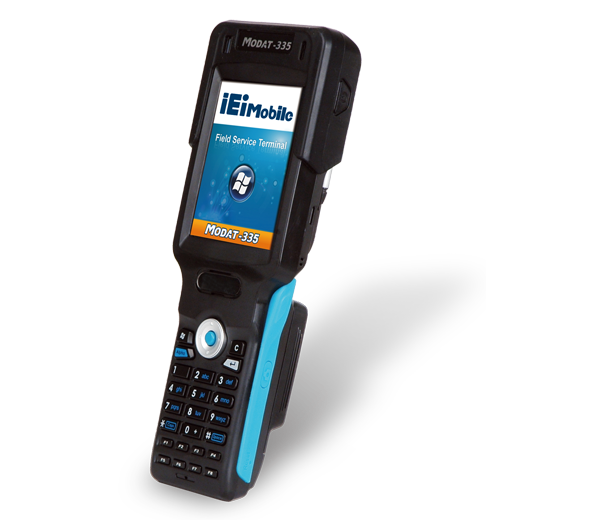

Field Service Terminal

End of Life

End of Life Notice

* Effective Date: 2017/04/29

» 3.5” TFT sunlight readable LCD touchscreen
» Marvell® PXA 310 624MHz CPU
» Built-in Windows® Embedded Handheld 6.5 OS
» Wi-Fi, Bluetooth and WCDMA/HSDPA or GPRS wireless technology
» Built-in GPS
» 1D laser/2D imager scan engine. Supports MIFARE® (ISO 14443A),FeliCa™, ISO 18092 and ISO 15693 RFID reader and 5-megapixel Camera
» Optional handle grip
» Optional UHF multiple tag reader supports 3-meter reading distance

Hardware Spec.

Display LCD Size
Brightness(cd/m2) 190 cd/m²
Max Resolution 240(H) x 320(V) QVGA
Viewing Angle 80/80/80/80 Deg.
Touch Screen 4-wire resistive type touch
System CPU
On-board Memory 256 MB SDRAM
Storage Built-in 256 MB Nand Flash
Communication Bluetooth
GPS GPS w/internal antenna
Wi-Fi Wi-Fi 802.11 a/b/g/n
modem WCDMA/HSDPA supports UMTS
900/2100MHz & GSM 900/1800MHz
Data Collection Barcode
RFID 13.56 MHz RFID support ISO 15693 and
14443A & MIFARE® & FeliCa™
Camera 5-megapixel CMOS camera with LED flashlight
Indicator&Buttons LED Indicator
Hot Keys 1 x Power button
1 x Camera button
3 x Barcode trigger buttons
I/O Interface Audio
Expansion 16-pin connector (RS-232/battery charging/USB host/USB client)
USB 1 x Mini USB client 2.0
Power Battery
Power adapter Input : 100V AC to 240V AC ~ 50-60Hz 0.2A
Output : 5 V / 2.6A
Environment Operating Temperature
Certification CE / FCC
Drop Survival 1.5 meter
Environmental Protection IP 54
Humidity 5%~90% non-condensing
Storage Temperature -20°C~60°C
Physical Characteristics Dimensions (LxWxH) (mm)
Net Weight 405 g

Ordering Information

MODAT-335-GPRS-WB65-En-E-R12 The Windows Mobile 6.5 based PDA with 3.5" panel, GSM 900/1800MHz,WiFi,Bluetooth, RFID reader, GPS, 5M Camera, 1D barcode, RoHS.
MODAT-335-WB65-En-E-R12 The Windows Mobile 6.5 based PDA with 3.5" panel, UMTS 900/2100MHz & GSM 900/1800MHz, GPS,WiFi,Bluetooth, RFID reader, 1D/2D barcode, 5M Camera, RoHS
MODAT-335-1D-WB65-En-R12 The Windows Mobile 6.5 based PDA with 3.5" panel,WiFi,Bluetooth, 1D barcode, 5M Camera, RoHS
