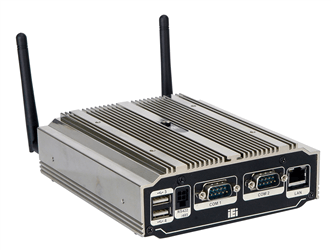

Fanless Embedded System with Intel® Atom™ N2600 1.6 GHz, Intel® NM10 Chipset, 2 GB DDR3 Memory

End of Life

End of Life Notice

* Effective Date: 2018/08/29

» Slim and compact embedded system design with 3rd Gen Intel® Atom™ N2600 dual-core processor, supports DDR3 memory (system max: 2 GB)
» 12V only single voltage design, supports AT/ATX power mode selection
» Flexible VGA and HDMI™ with dual-display support
» Supports PCIe Mini card slot
» Fully I/O with four USB, one VGA, one HDMI™, three COM and audio

Hardware Spec.

Color Silver
Dimensions 146.6 x 132 x 45.2
Humidity 5% ~ 95%, non-condensing
Operating Temperature 0°C ~50°C with air flow (mSATA)
Expansion Slots
Expansion Slots PCIe Mini 1 x Full size (reserved for Wi-Fi module)
Form factor
SBC Form Factor CPU:Intel® Atom™ N2600 1.6 GHz
Chipset:Intel® NM10
System Memory:1 x 204-pin DDR3 SO-DIMM (system max: 2 GB) Pre-installed 2 GB
I/O Interface
I/O Ports 4 x USB 2.0
1 x RJ-45
1 x PCIe GbE by Realtek 8111E
RS-232:2 x DB-9
RS-422/485:1 x RJ-45
Display:1 x VGA, 1 x HDMI™
VGA: Up to 1920 x 1200
HDMI™: Up to 1920 x 1080
Audio:1 x Line-out, 1 x Mic-in
Wireles:1 x 802.11b/g/n (optional)
Cooling method / System Fan Fanless
Drive Bays 1 x 2.5’’ SATA HDD bay
Weight 980 g/1.8 kg

Ordering Information

uIBX-210-CV-N2600/2GB-R11 Fanless embedded system with Intel Atom N2600 DC 1.6GHz, Intel NM10 chipset, single-channel 2GB DDR3 800MHZ, 12VDC-In, with 36W power adaptor, black

Package Contents

Package Content
  • 1 x uIBX-210-CV-N2600-R10

  • 1 x Adaptor 12V/5A

  • 1 x Screw set

  • 1 x QIG (Quick Installation Guide)
